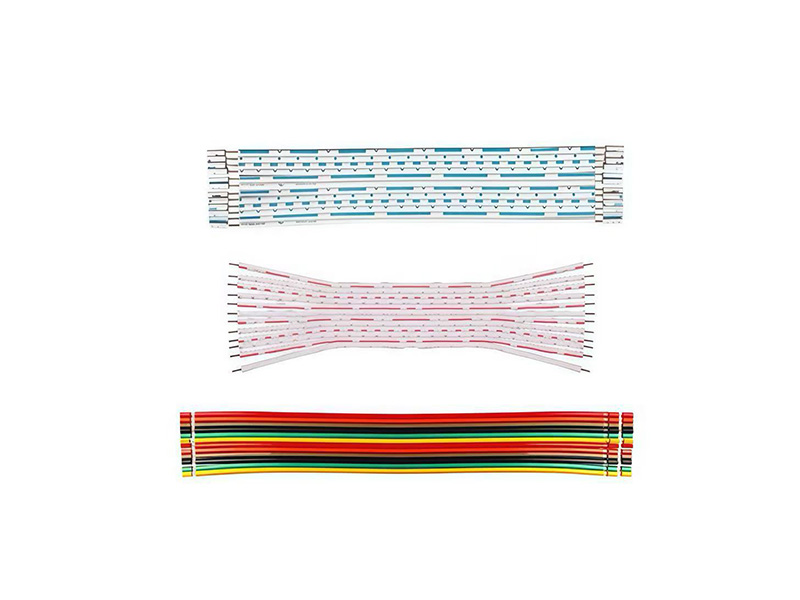

• Designed for ribbon cable processing, including cutting, splitting, and stripping;
• Easy-to-use with computerized control and button operation;
• High-speed stripping with adjustable wire head, tail, and total length;
• Independent speed settings for feeding, cutting, and stripping for optimal results;
• Supports quantity setting, bundling, delay timing, and middle stripping;
• High-precision motor drive with long service life;
• Stores up to 100 wire processing presets;
• Two slitting modes: punching and sliding cut.

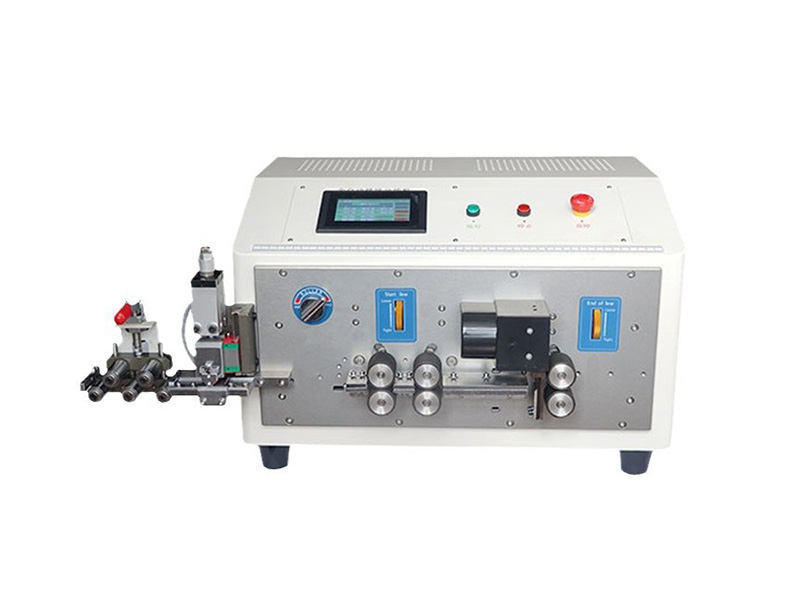

Name | Computerized slitting,cutting and stripping machine for ribbon cable |
Wire range | AWG26#:1-15pin;AWG24#:1-12pin (Specially Customizable) |
Cutting length | 30-99999mm |
Slitting length | 1-200mm |
Stripping length | wire head 0.5-30mm/wire end 0.5-30mm |
Cutting precision | ± mm |
Capacity | 1000-3000 pcs/h |
Tool materials | Imported tungsten steel and high speed steel |
Drive | 4 wheels driven |
Feeding speed | 0.7m/s |
Voltage | 220V 50/60HZ |
Motor | 0.3KW |
Air supply | 0.3Mpa-0.5Mpa |
