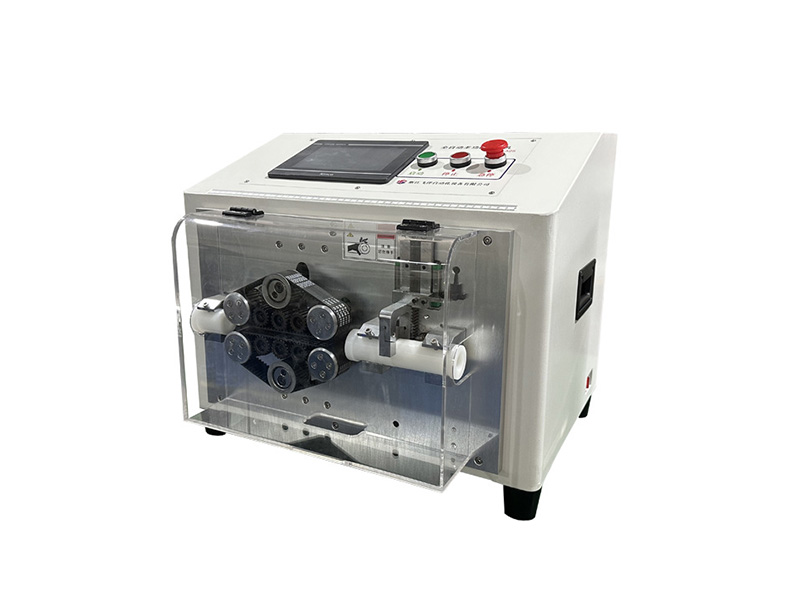

JMK Automatic Computerized Pipe Cutting Machine (corrugated Pipe/PVC/pipe High-pressure Oil Pipe/rubber Rubber Pipe/PU Pipe/)

• Warranty Period:24 Months
• Degree of automation:Automatic
• Certificate:CE/ISO:9001/ISO45001

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical Parameters:

Equipment Name	Automatic Multifunctional Pipe Cutting Machine
Weight	56KG
Overall Dimension	L560xW510xH480mm
Input power	AC220V 50/60HZ
Overall power	600W
Rated power	400W
Equipment Function	400W
Auxiliary function	Automatic tube in/out,timed start,point adjustment
Pipe feeding method	10 rounds of overlaying belt type tube feeding
Cutting length	0.01mm-99999.99mm
Cutting Diameter	Φ3mm-Φ25mm
Capacity/hour	About 7000 times
Drive structure	Hybrid stepping motor,high-speed microprocessor
Program storage	Serial number 00-99
Display mode	7-inch color screen display
Control system	4-axis motion control board

Case:

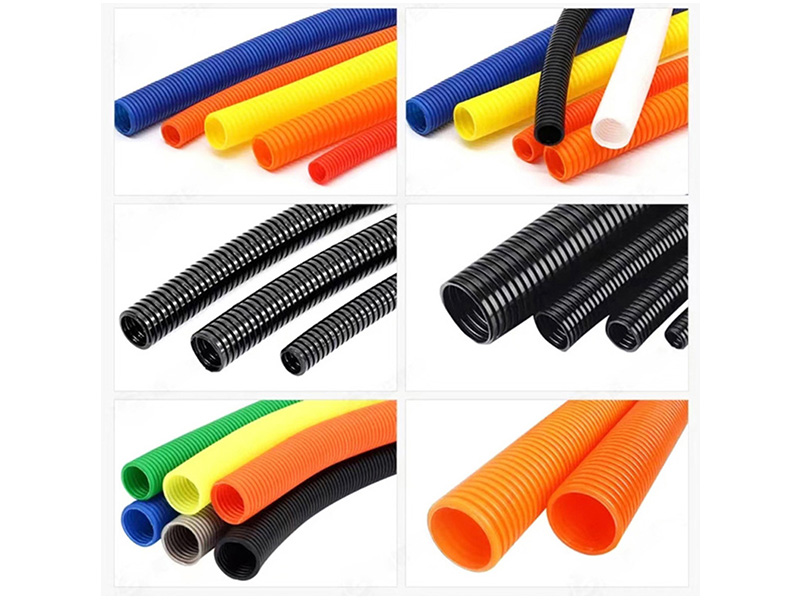

Used for cutting round plastic hose, corrugated hose, PVC hose, high pressure oil hose, rubber hose, high processing efficiency, stable control, suitable for cutting corrugated hose with diameter below 35MM, with visual control system.
