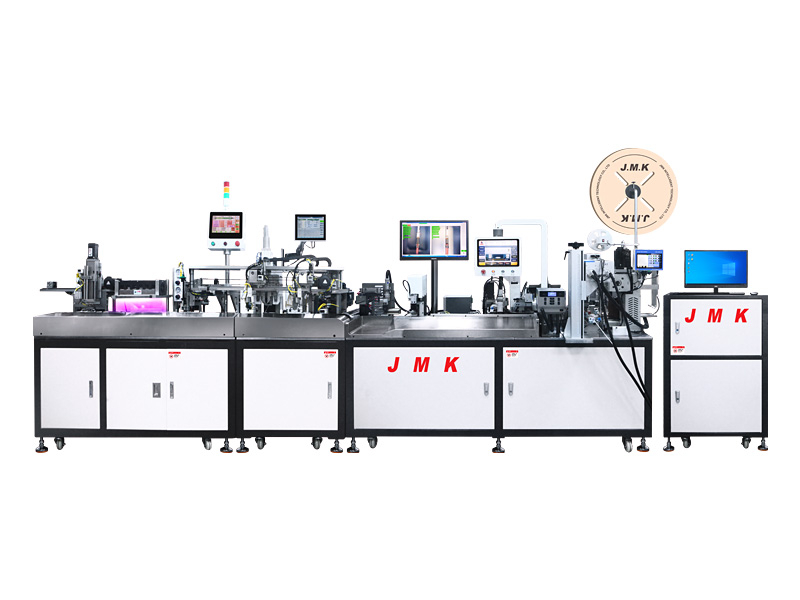

JM-228 Automatic Tube Inserting And Glue Dispensing Terminal Crimping Machine

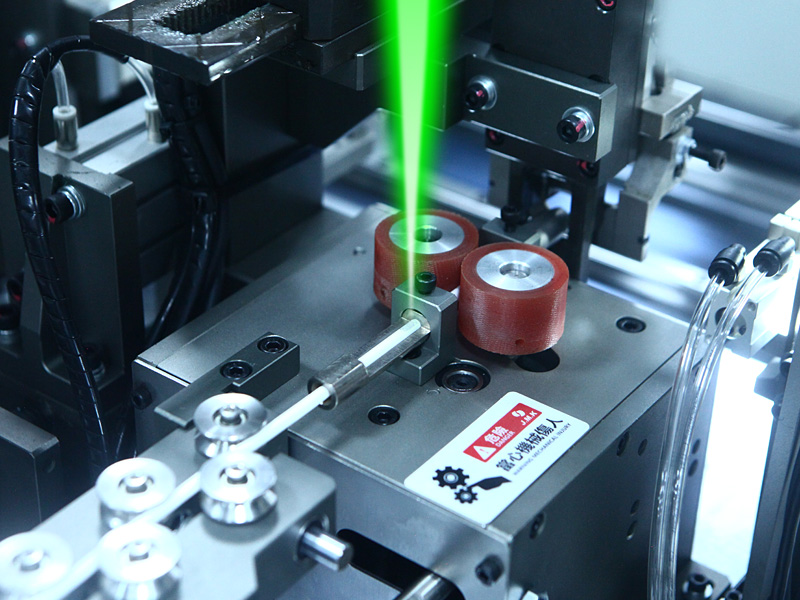

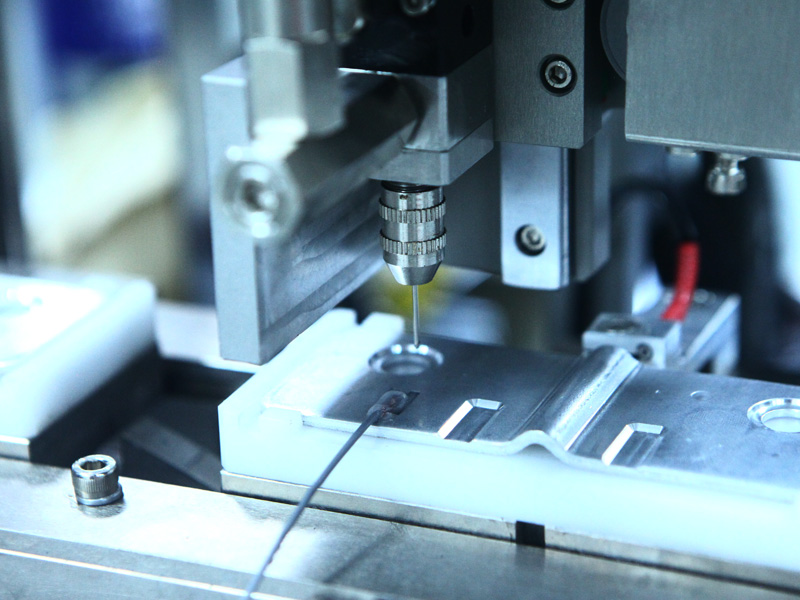

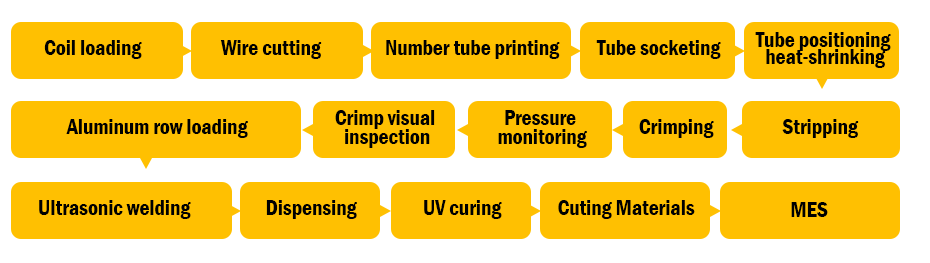

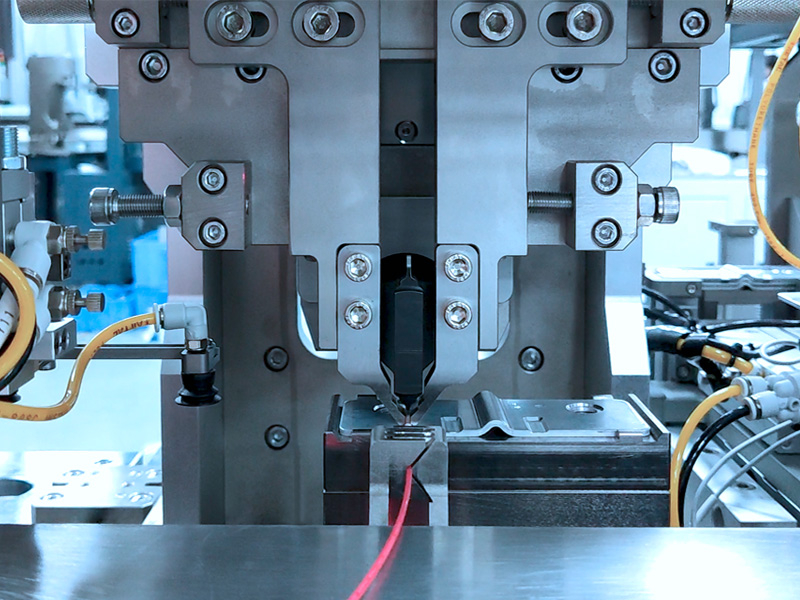

It can do wire cutting and stripping, laser coding, heat tube insertion, one end crimping, ultrasonic welding, glue dispensing and UV curing, can be connected to MES system
Model Name | JM-228 Automatic Tube Inserting And Glue Dispensing Terminal Crimping Machine |
Function | Wire cutting and stripping,laser coding,heat tube insertion,one end crimping,ultrasonic welding,glue dispensing and UV curing,connected to MES system |
Cutting Precision | ≥1M ±1.5mm,≤1M ±1mm |
Wire Size | AWG 26#-16# |
Strip Precision | ≤±0.2mm |
Cut Length | 0.08~3.0 meters |
Tube Length | 10~30mm |
Tube Diameter | OD2.0-4.0mm |
Efficiency | ≥1M ≥600PCS/H,≤1M ≥700PCS/H;no tube insertion:≥1M ≥700PCS/H,≤1M ≥800PCS/H |
Defective Rate | ≤0.3% |
Ratio Power | 3KW |
Detection | No terminal,Laser printing error,Pressure Detection,CCD Visual Inspection |
Machine Size | Length 3000 × Width 1000 × Height 2000mm |
Power Source | 220V 50/60Hz,0.5-0.7Mpa |
