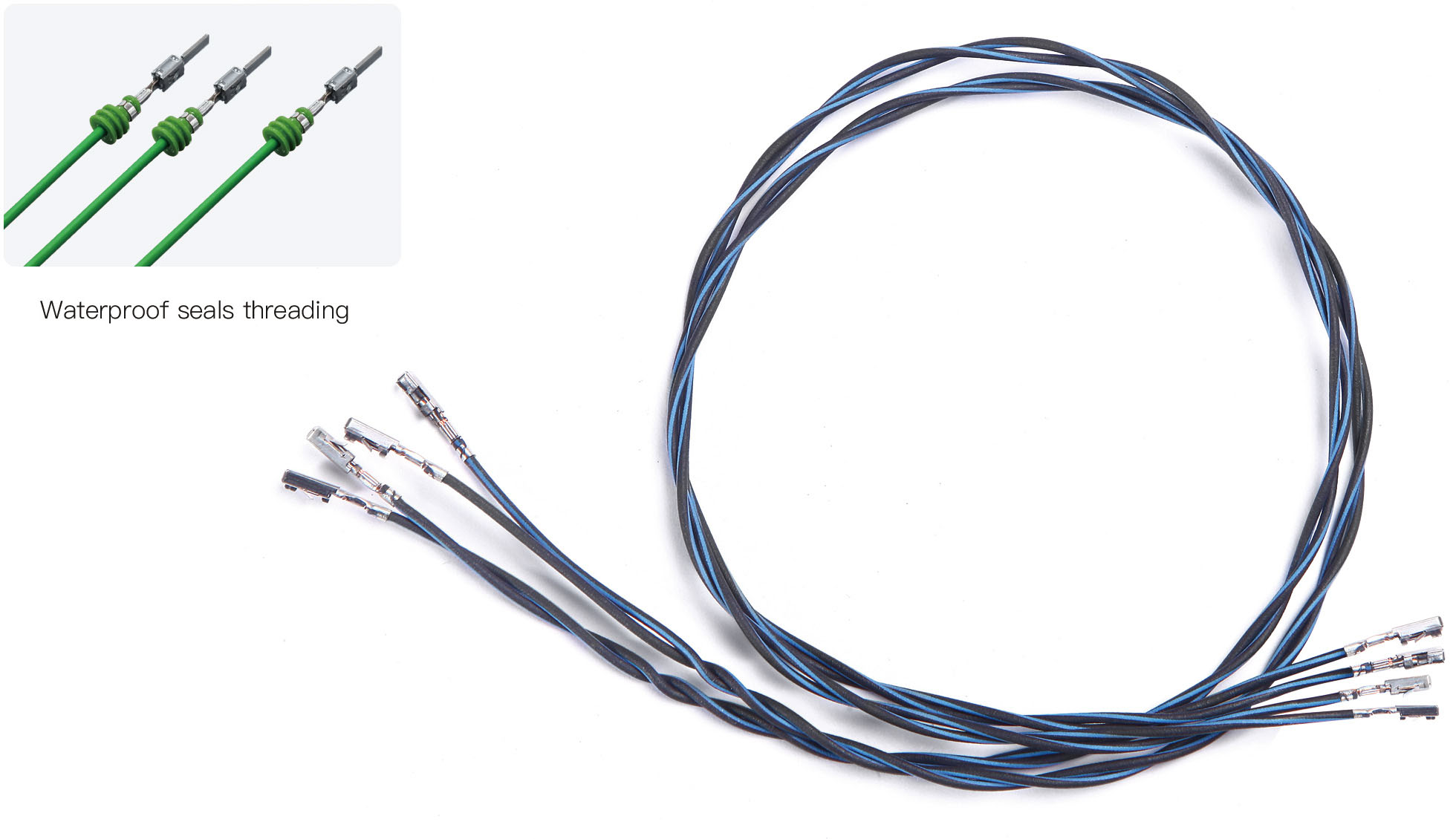

Wire Cutting/Stripping--Dual-end Crimping--Wire Twisting--Waterproof Seals Inserting
• Features a fully closed-loop flexible wire feeding system with a rubber belt mechanism to protect the wire surface and enhance feeding accuracy.
• Incorporates a network-driven system to meet the rigorous industrial processing demands of photovoltaic wires.
• Utilizes imported servo motor drives to ensure high precision, efficiency, and operational stability.
• Runs on an industrial-grade computer operating system, offering a user-friendly and intuitive interface.
• Supports both manual and automatic debugging modes, making equipment setup faster and more efficient.
• Equipped with a servo-driven crimping system that maintains a stable compression ratio, fully meeting cross-sectional analysis standards.

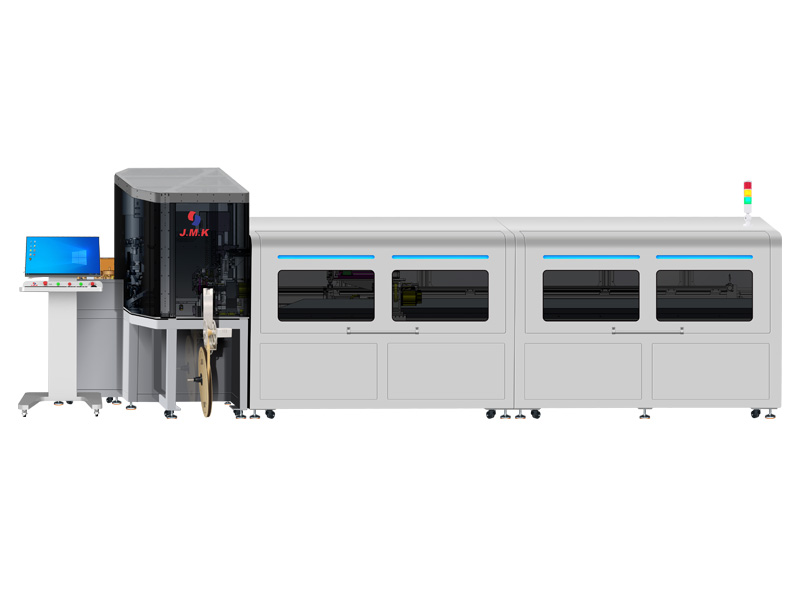

Model | JM-560 Automatic Crimping Machine (Cutting/Stripping Wire Twisting Waterproof Seals Inserting) |
Function | Wire cutting and stripping,Single / dual-end crimping,waterproof seals inserting,wire twistina. connected to MES |
Wire color | Two colors |
Cutting length | 300mm~4000mm |
Cutting precision | ±0.3%xL |
Stripping length | 0~18mm |
Crimping force | 4T servo crimping machine x2 sets |
Twist pitch | (5-80)±10% |
Mould | OTP |
Detecting device | Air pressure detection,no wire / no terminal detection:Optional:Compression force monitoring,CCD,Waterproof Seals Station. |
Control | PLC |
Compressed air | 0.5~0.7Mpa(about 130N/min~170N/min) |
Power supply | 3-phase AC380V/50/60Hz 60Hz |
Size | L6300xW1800xH2000mm |
Weight | About 2000kg |
