Double Stripping Crimping Housing Inserting

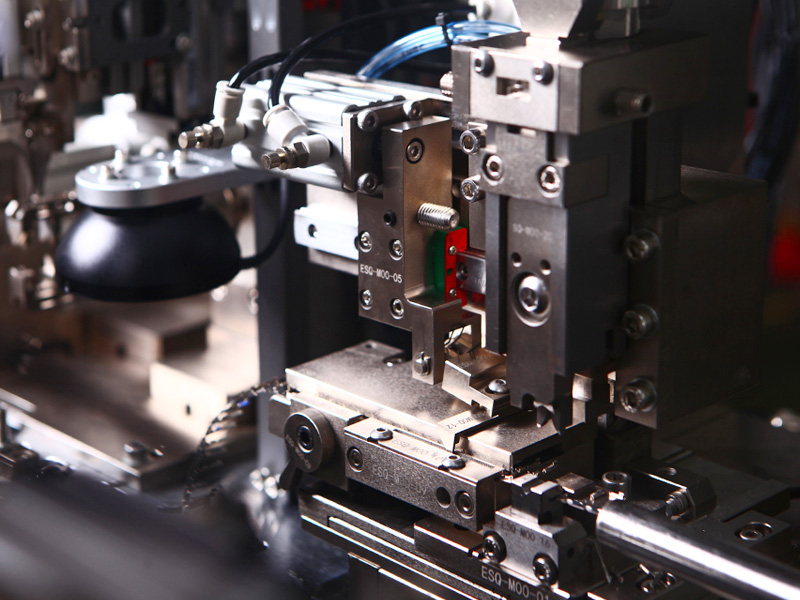

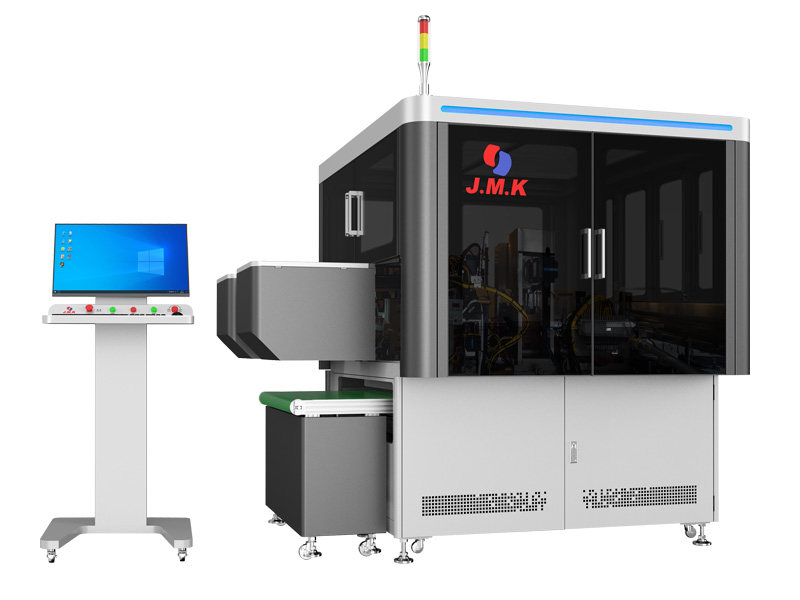

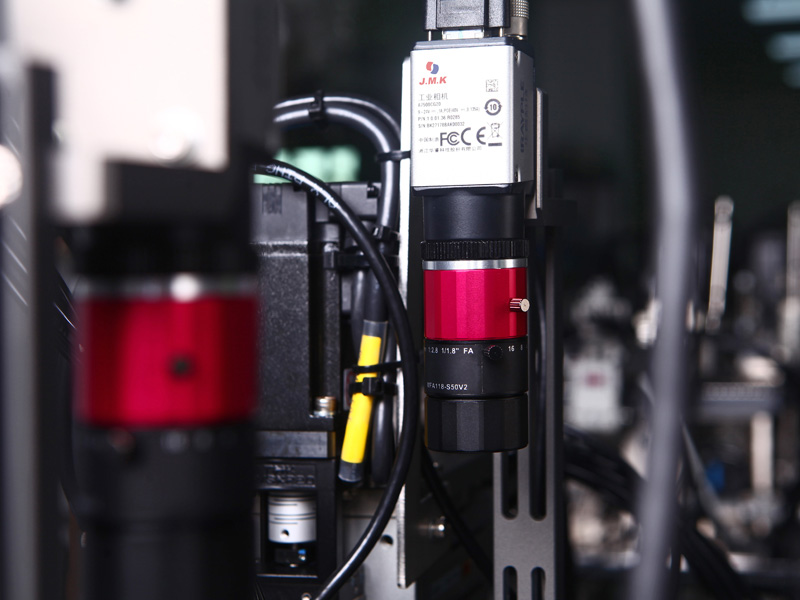

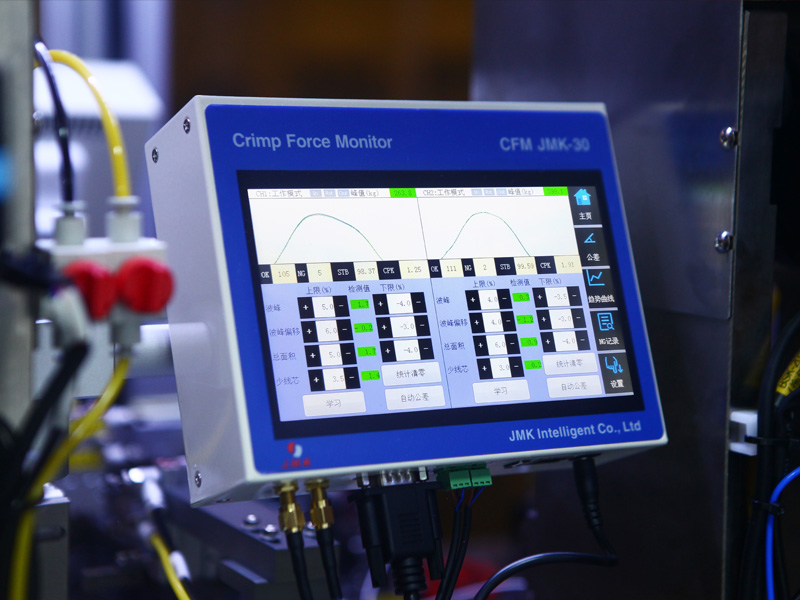

JM-600 automatic double-head terminal inserting machine, using PC numerical control system, computer numerical control human-machine interface, touch keypad and mouse dual input, easy to operate, production management is more convenient. Optional pressure monitoring system and CCD image detection system, real-time display of product images and crimping force curve, and comparative analysis, crimping will trigger alarms and automatically sort out defective products. The whole process of quality control greatly saves labor cost, ensures product quality and improves production efficiency.
MODEL | JM-600 Double Stripping Crimping Housing Inserting Machine |
Power supply | AC220V 50/60Hz 10A |
Speed | Approx. 1.8 sec/strip (when cutting the shortest wire) |
Gas source | 0.5MPa, Approx. 170N/min |
Wire color | 1-18 (6 colors as standard) |
Cutting length | 45-1000mm (customizable) |
Cutting precision | ± 0.5%xL |
Stripping length | 0-5.0mm(±0.1mm) |
Wire range | AWG#18-#28 (customizable) |
Crimping capability | 2T servo crimping machine x2 units |
Size | W2000xD1800xH1900mm |
Weight | About 700kg |
Optional | CCD Visual Inspection;Pressure Monitoring;(CCD Image Monitoring;Pressure Monitoring) |
