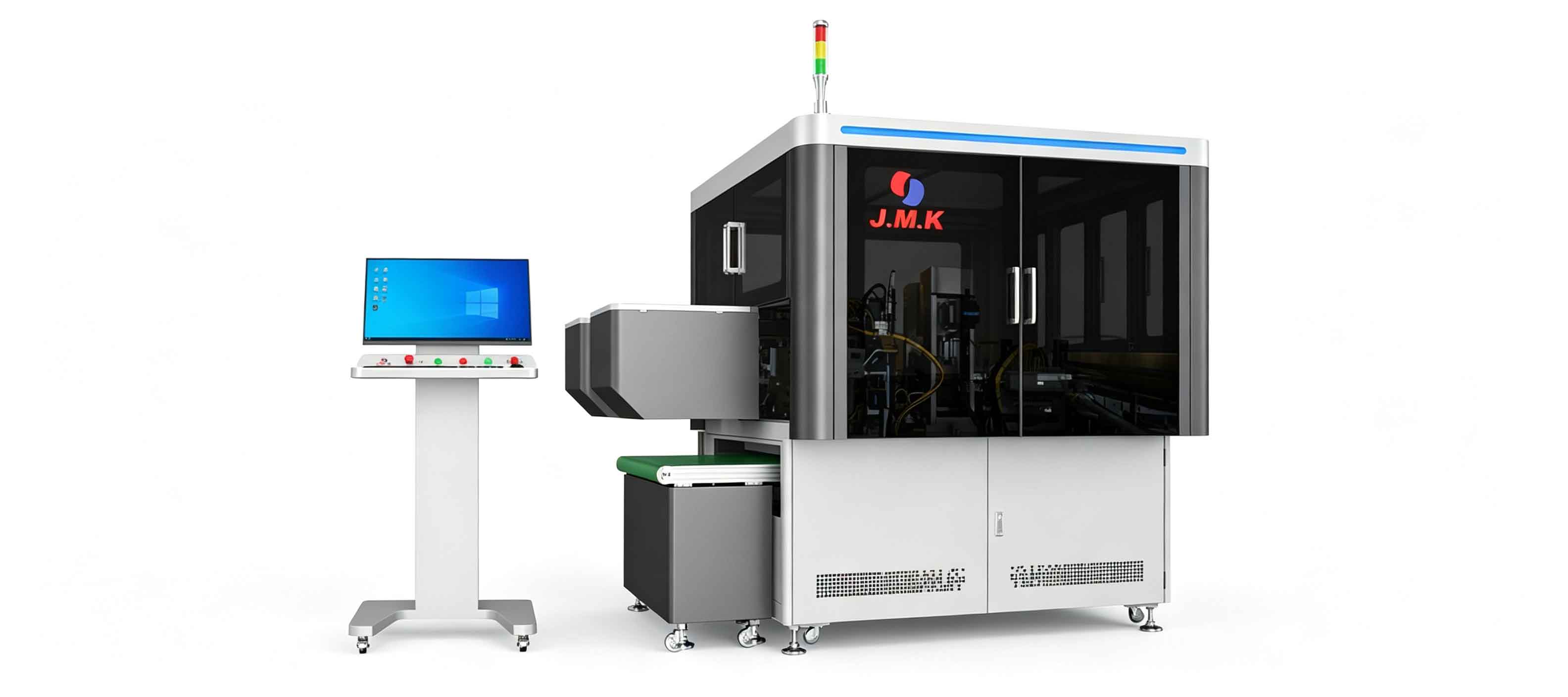

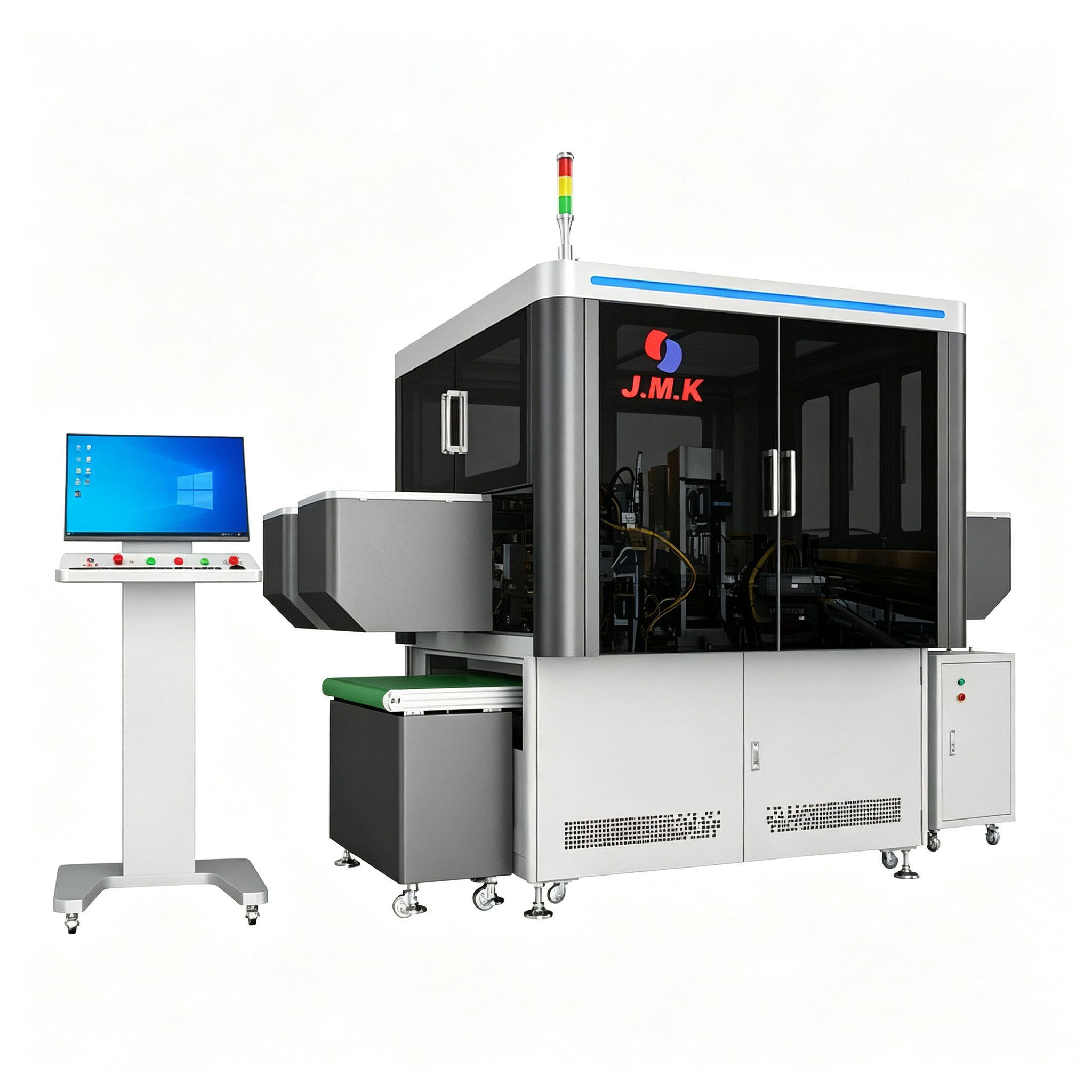

JM-600 Fully Automatic Double-End Crimping & Housing Insertion Machine
The JM-600 is a fully automatic wire harness processing machine designed for efficient cutting, stripping, double-end terminal crimping, and double-end housing insertion. With an integrated automated process, the JM-600 can significantly reduce manual operations while improving production efficiency, consistency, and quality.

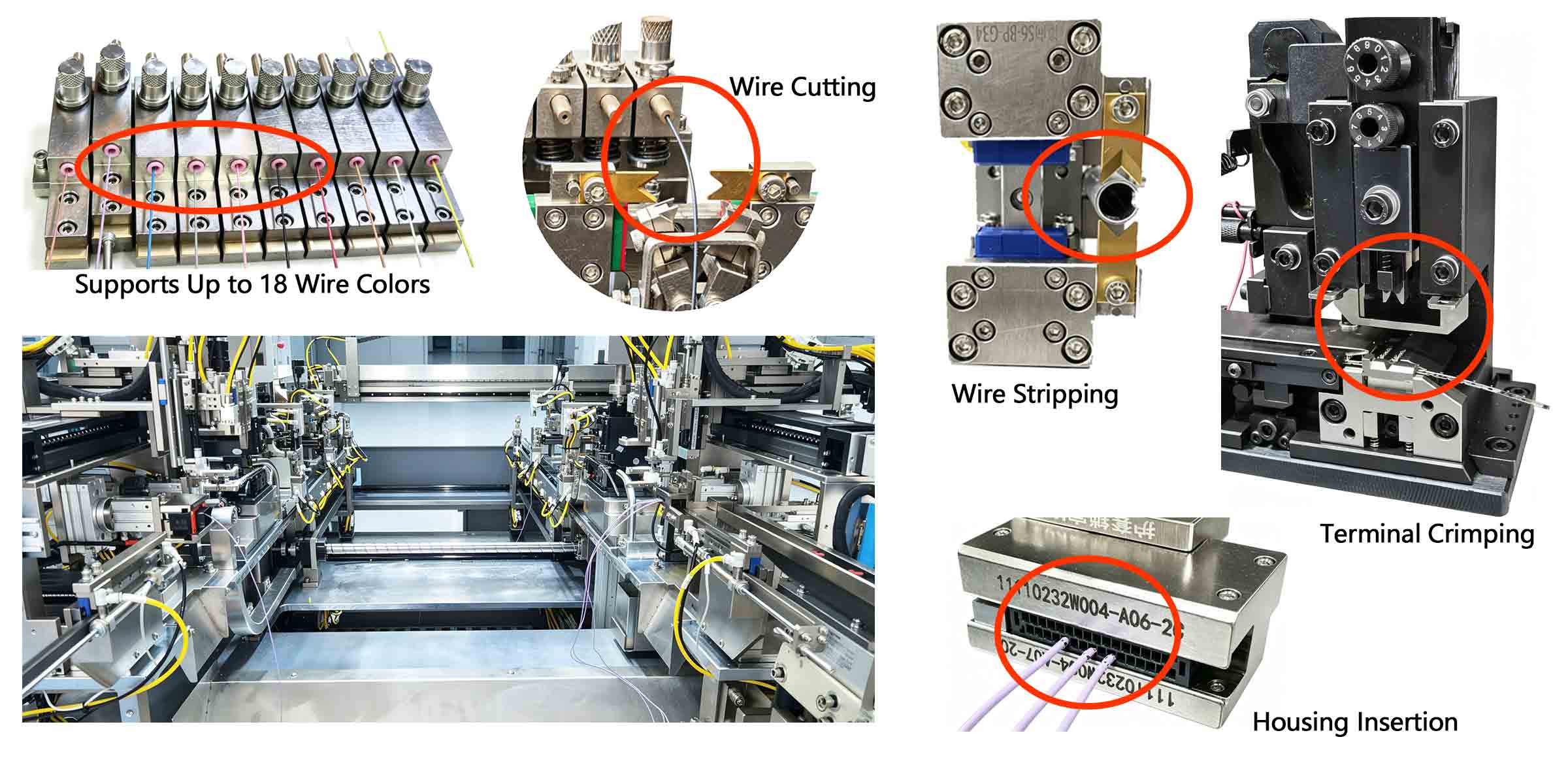

Key Features
• Fully automatic wire cutting and stripping
• Double-end terminal crimping
• Double-end housing insertion
• Processing length: 45–1000 mm
• Supports 1–18 wire colors, with 6 colors as standard
• Wire size: AWG #18–#28
• PC-based CNC control system
• Touchscreen and keyboard/mouse operation
• Optional crimping force monitoring system
• Optional CCD vision inspection system
• Automatic detection and rejection of defective products
• Flexible configuration and customized solutions available
MODEL | JM-600 Fully Automatic Double-End Crimping & Housing Insertion Machine |
Power supply | AC220V 50/60Hz 10A |
Speed | Approx. 1.8 sec/strip (when cutting the shortest wire) |
Gas source | 0.5MPa, Approx. 170N/min |
Wire color | 1-18 (6 colors as standard) |
Cutting length | 45-1000mm (customizable) |
Cutting precision | ± 0.5%xL |
Stripping length | 0-5.0mm(±0.1mm) |
Wire range | AWG#18-#28 (customizable) |
Crimping capability | 2T servo crimping machine x2 units |
Size | W2000xD1800xH1900mm |
Weight | About 700kg |
Optional | CCD Visual Inspection;Pressure Monitoring;(CCD Image Monitoring;Pressure Monitoring) |
