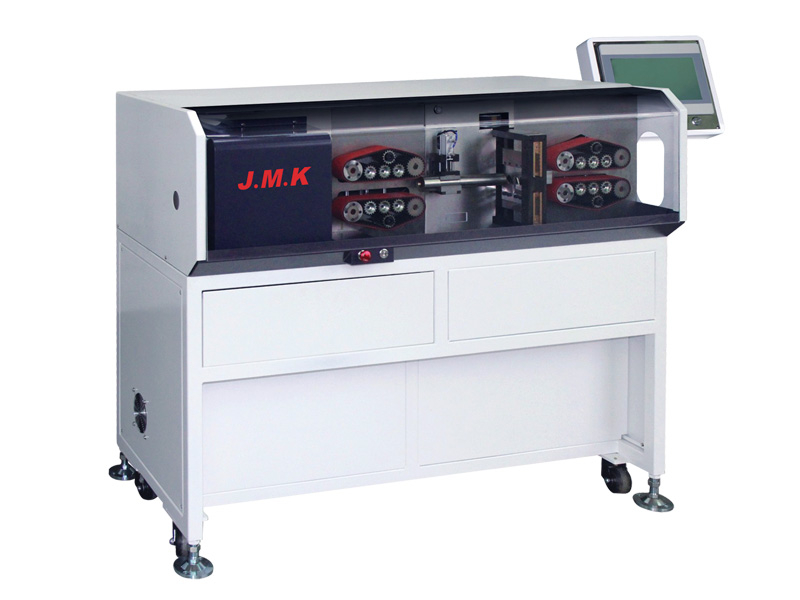

JM-70 is a new energy large-square wire harness processing equipment with microcomputer control, mainly for the processing of high-voltage power cables used in new energy, energy storage, electric power, battery packs, charging piles and charging guns, and electric control. It is suitable for cutting and stripping cables with different wire diameters and multi-layer cables.
Model | JM-70 |
Wire range | 6~200mm2 |
Pipe diameter | 6~25mm |
Stripping length | Front 400mm/Rear 250mm (Max. peeling length) |
Cutting accuracy | 0.1%L +1 |
Stripping layers | 9 layers |
Stripping method | Cutting/peeling knife |
Efficiency | Approx. 300~700Pcs/H |
Power/Air | 220V 50/60Hz,0.5-0.8Mpa |
Size/Weight | W1500×D700×H1450mm,Approx. 300kg |
