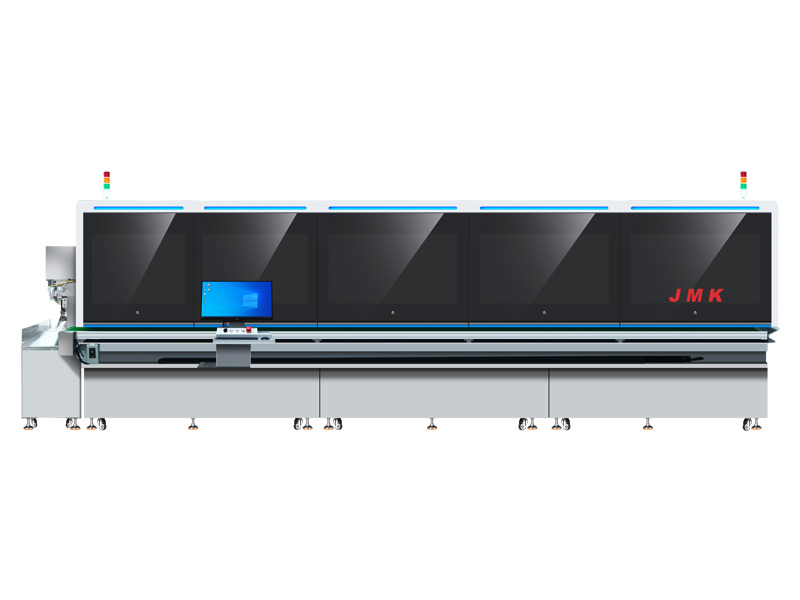

JM-700 High Voltage Wire Harness Production Line

• Optional 6-50T servo crimping machine, can crimp various shapes of terminals, scope from 2.5-300m㎡ terminals.
• Certificate:CE/ISO:9001/ISO45001
• Warranty Period:24 Months

Availability:

Quantity:



Inquire Add to Basket

Product Description

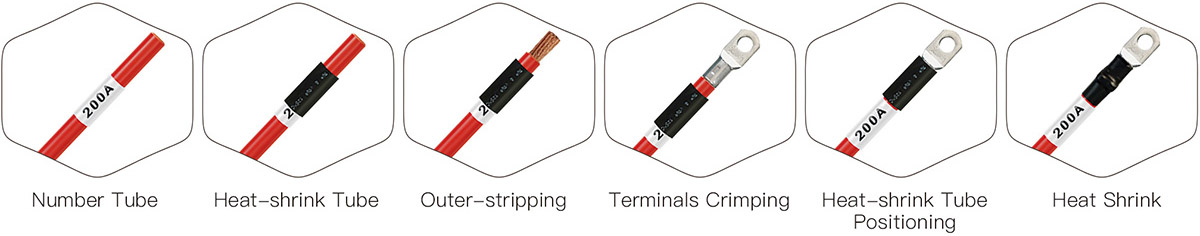

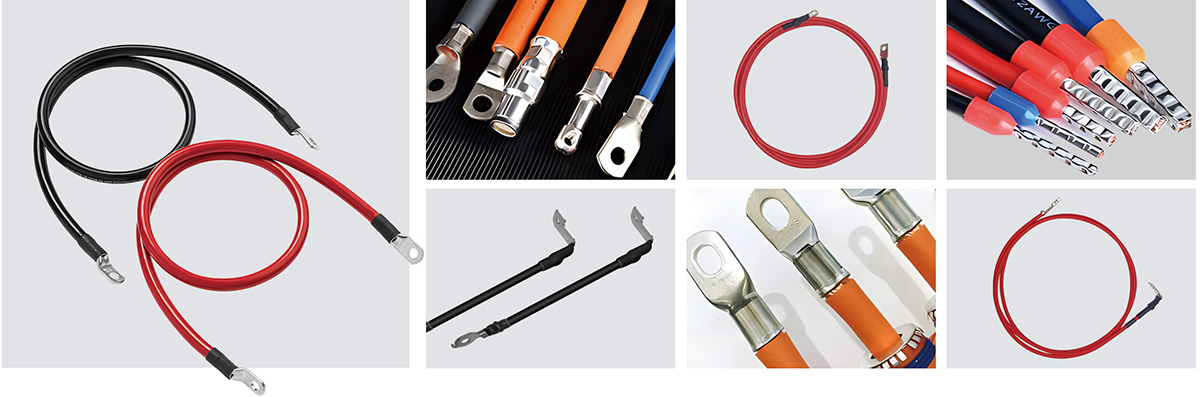

Wire Number Tube/Heat-shrink Tube/Outer-stripping/Terminals Crimping/Heat-shrink Tube Positioning/Heat Shrink

Product Feature:

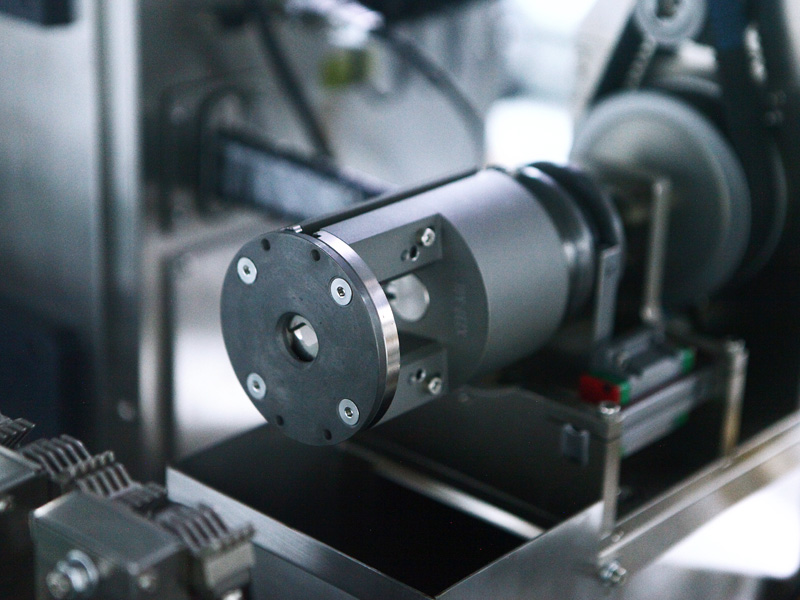

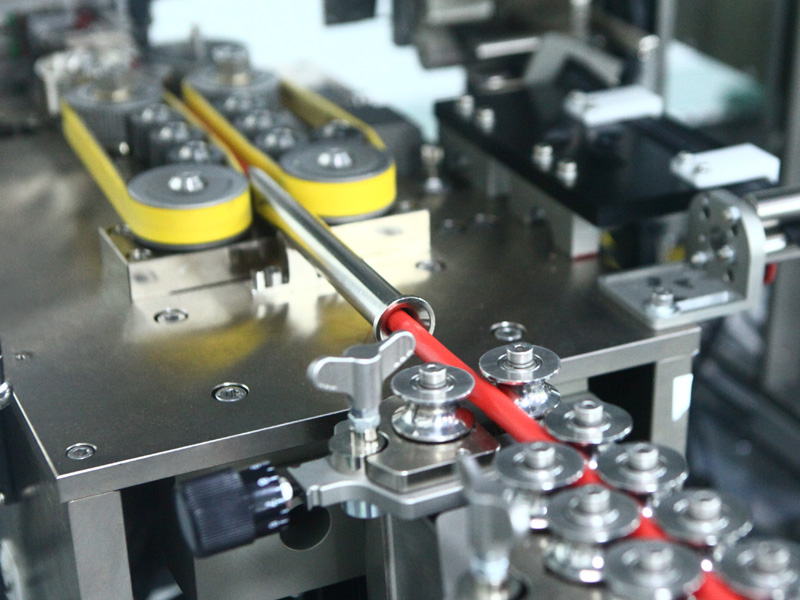

• Features a fully closed-loop flexible wire feeding system with a rubber belt mechanism to protect the wire surface and enhance feeding accuracy.

• Incorporates a network-driven system to meet the rigorous industrial processing demands of photovoltaic wires.

• Utilizes imported servo motor drives to ensure high precision, efficiency, and operational stability.

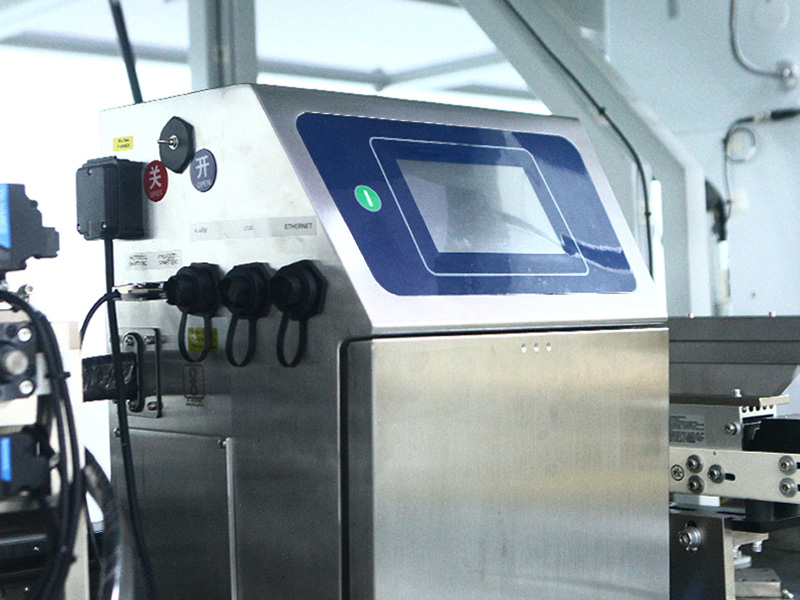

• Runs on an industrial-grade computer operating system, offering a user-friendly and intuitive interface.

• Supports both manual and automatic debugging modes, making equipment setup faster and more efficient.

• Equipped with a servo-driven crimping system that maintains a stable compression ratio, fully meeting cross-sectional analysis standards.

Technical Parameters:

Model	JM-700 High voltage wire Harness production line
Capacity	Approx. 10s/pcs (at shortest tangent)
Wire range	2.5–300mm² (customizable)
Cutting length	400mm–4000mm
Stripping length	0–20mm
Cutting precision	±0.3%xL
Crimp force	20T servo crimping machine x2 (customizable)
Detecting device	Low pressure,wire detection,pressing error;Optional:CCD visual inspection,Compression force monitoring.
Control	PLC
Power supply	AC380V 50/60Hz three-phase
Aire supply	0.5MPa,approx. 170N/min
Temperature	5°C – inner 50°C
Humidity	30%–80%RH (no condensation)
Size	L6500xW5000xH1900mm (without protrusions)
Weight	About 6000kg
