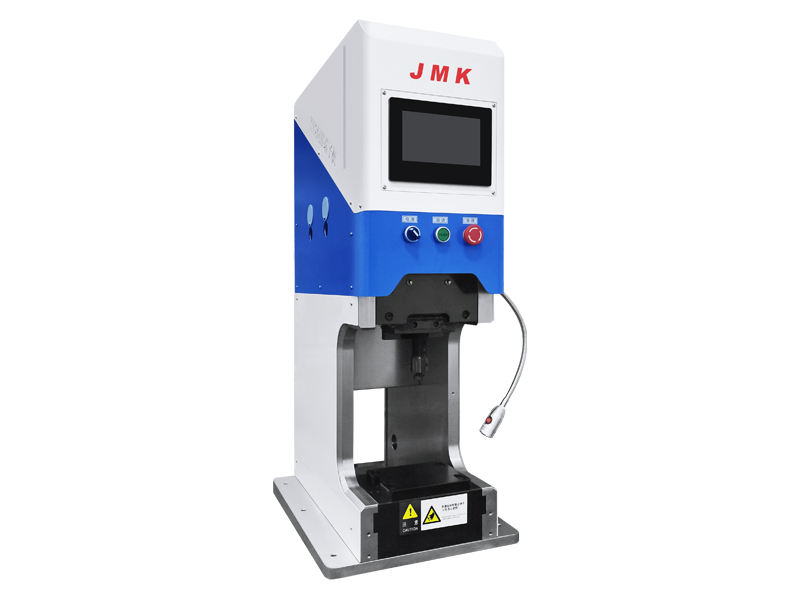

Addressing the demanding requirements of modern wire processing, the 20T/30T/50T Intelligent Servo Crimping Machine is engineered specifically for heavy-duty applications. As the new energy sector rapidly expands, the need to process thick cables for electric vehicle charging infrastructure, photovoltaic energy storage, and rail transit systems has never been more critical. This equipment directly tackles the common pain points of high-voltage wire harness processing. When standing next to the unit, operators will immediately notice the imposing, heavy-duty cast-steel frame, designed to absorb immense forces and eliminate micro-vibrations during operation. Instead of the loud, jarring mechanical noises typical of older equipment, this unit operates with the quiet, controlled hum of a high-performance servo motor. It provides a highly controlled environment where immense pressure meets absolute precision. By focusing on structural rigidity and intelligent control, this machine ensures that every single crimp delivers the exact electrical conductivity and mechanical pull-force required by stringent industry regulations, securing the foundation of your electrical assemblies.
To maintain a competitive edge in wire harness assembly, relying on manual adjustments is no longer sufficient. This intelligent servo crimping machine integrates several advanced technologies to optimize your production floor, ensuring that every connection meets exact specifications without relying on operator guesswork.
Precision Servo Drive Technology: Driven by a high-performance servo motor, the system allows for independent adjustment of both the crimping force and the crimping height. This precise control guarantees an ultimate processing accuracy of ±0.03mm, ensuring consistent results across thousands of cycles.
Intelligent System Integration: Ready for the digital factory environment, the equipment features reserved hardware interfaces for MES (Manufacturing Execution Systems). It supports barcode scanning, enabling operators to rapidly import or export processing parameters, drastically reducing setup times and human input errors.
Exceptional Structural Rigidity: Built around a high-strength cast steel framework, the machine easily withstands up to 50T of immense pressure. This rigid construction prevents frame distortion during high-frequency operations, guaranteeing an ultra-long service life even under continuous heavy workloads.
Advanced Safety Mechanisms: Operator protection is prioritized through an ergonomic safety guard design and a highly responsive emergency stop switch. In the event of any processing anomaly, the machine halts instantly, preventing accidents and material waste.
Streamlined Maintenance: An integrated automatic lubrication system continuously protects moving parts. Combined with a quick-release mold structure, this significantly reduces daily manual maintenance tasks and minimizes costly production downtime.
Versatile Mold Compatibility: Flexibility is key for diverse production runs. The system fully supports a wide array of dies, including hexagonal, open hexagonal, quadrilateral, four-point, and upper/lower stamping molds. Operators can execute rapid mold changes at any time, easily accommodating multi-variety, small-batch flexible manufacturing demands.
Evaluating the exact specifications is a critical step for integrating new equipment into your specialized production environment. The data table below outlines the precise capabilities of the JM-20T, JM-30T, and JM-50T models. These machines are specifically calibrated to handle extensive wire diameters, ranging from standard 2.5mm² up to massive 300mm² thick cables. The physical footprint and substantial weight—reaching 570kg for the 50T variant—are direct indicators of the dense cast-steel construction required to maintain absolute stability during high-yield output. Furthermore, the intuitive color touch screen operating system, which can be upgraded to a full industrial computer, gives operators granular control over the 2600W power system, ensuring optimal energy utilization for every cycle.
Model | JM-20T | JM-30T | JM-50T |
Max pressure | 20T | 30T | 50T |
One stroke | 50mm | 75mm | 75mm |
Wire diameter | 2.5~95mm² | 2.5~180mm² | 2.5~300mm² |
Weight | 450kg | 450kg | 570kg |
Size | 700*800*1550mm | 700*800*1700mm | 700*800*1900mm |
Precision | ±0.03mm | ||
Efficiency | ≈300~400Pcs/H | ||
Start mode | Start button,foot switch | ||
Operating system | Color touch screen（Optional industrial computer） | ||
Power | 2600W | ||
Voltage | 220V 50/60Hz | ||

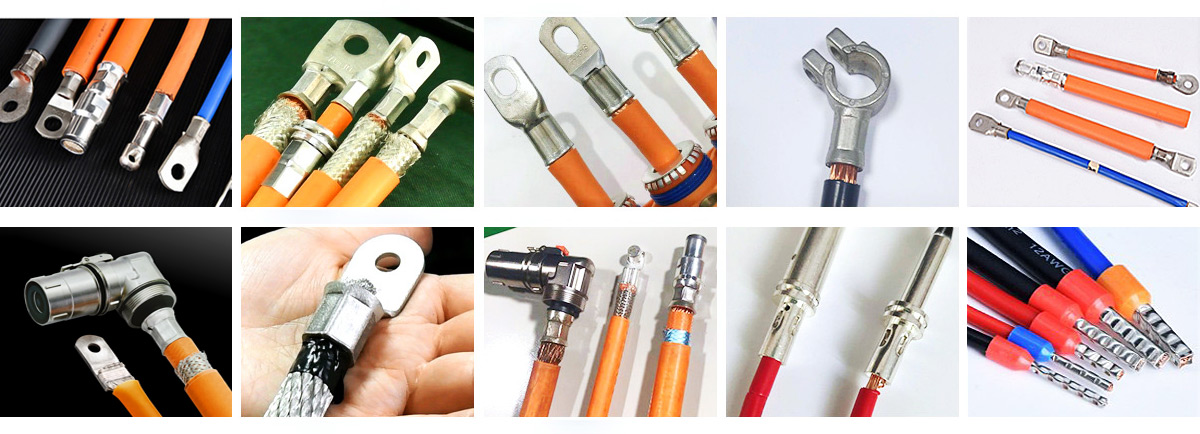

The true measure of any wire processing equipment lies in the physical and structural integrity of its finished output. When utilizing this intelligent servo crimping machine, the resulting terminal connections exhibit a flawless, cold-pressed metallic finish. Upon close visual inspection, operators will notice the distinct absence of loose copper strands, surface burrs, or uneven material deformation—a direct result of the strict ±0.03mm precision control. The finished samples demonstrate a solid, airtight bond that feels incredibly dense and secure to the touch. This geometric perfection is essential for safely conducting high currents in electric vehicle charging piles and photovoltaic systems without generating excess heat. Whether processing standard 2.5m㎡ wires or massive 300m㎡ thick cables, the machine adapts without hesitation. The rapid-change mold system allows for fluid transitions between various terminal shapes, producing perfectly formed hexagonal or quadrilateral joints. These meticulously crafted connections consistently meet strict industry standards for pull-force resistance and long-term electrical conductivity, ensuring the reliability of your final product.
