JM-228 Automatic Wire Cutting And Glue Dispensing Terminal Crimping Machine

JM-228 Automatic Tube Inserting And Glue Dispensing Terminal Crimping Machine

Product Introduction:

The JM-228 unit represents a highly integrated approach to wire harness processing, consolidating seven distinct manufacturing stages into a single, compact footprint. By combining wire cutting, stripping, heat shrink tube insertion, single-end crimping, ultrasonic welding, precise glue dispensing, and UV curing, this equipment significantly reduces floor space requirements and minimizes manual material handling across the facility. Operators interact with a responsive, intuitive Human-Machine Interface (HMI) screen that offers immediate tactile feedback, allowing for swift parameter recall and rapid mold changeovers without complex reprogramming. The system accommodates a versatile range of wire sizes from AWG 26# to 16#, making it adaptable to various project demands.

Underneath the heavy-duty exterior, the machine operates with the steady, quiet hum of premium international-brand servo motors, precision linear guides, and robust pneumatic components. These precision-engineered parts ensure long-term durability and exact cutting accuracy even during continuous, high-speed production runs reaching up to 800 pieces per hour. The modular mechanical design empowers production managers to adapt to changing harness specifications swiftly, maintaining a fluid and uninterrupted manufacturing rhythm while reducing the physical strain on operators.

Technical Parameter：

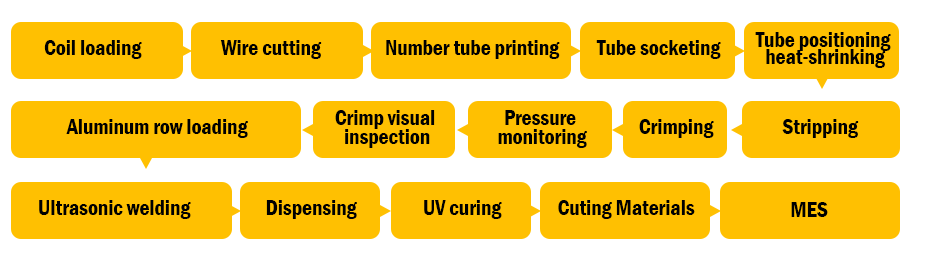

Technological Process:

To ensure every processed wire meets stringent dimensional and electrical metrics, this equipment incorporates a comprehensive closed-loop quality control system throughout the entire technological workflow. As the wire moves through each station, multiple inspection layers actively monitor the physical properties of the harness.

• Automated Defect Rejection: A high-resolution CCD visual inspection camera and sensitive terminal pressure monitors work in tandem to detect physical anomalies instantly. The system automatically identifies and isolates defects such as missing terminals, laser coding errors, or improper crimp pressure, triggering an immediate alert and physical rejection of the flawed piece into a designated bin.
• Digital MES Connectivity: Equipped with a standard Manufacturing Execution System (MES) interface, the machine actively captures, records, and uploads real-time production data. This connectivity transforms traditional assembly floors into transparent, digitally monitored workspaces where every operational metric is visible.

This rigorous, automated screening maintains an exceptional finished product defective rate of ≤0.3%, protecting your downstream assembly processes while allowing facility managers to trace the complete lifecycle of every batch for continuous improvement.

Sample：

The finished samples produced by this automated system exhibit a clean, precise finish that speaks directly to the exactness of the internal mechanical components. Upon physical inspection, the stripped wire ends show absolutely no frayed copper strands or damaged insulation, while the ultrasonically welded joints present a solid, uniform metallic bond that resists severe pull-force testing. The dispensed glue and subsequent UV-cured sections offer a smooth, hardened tactile feel, ensuring absolute environmental sealing and mechanical protection against moisture and vibration. Heat shrink tubes are positioned with pinpoint accuracy, tightly conforming to the wire contours without any scorching, bubbling, or uneven shrinkage. Every laser-printed code on the wire jacket remains crisp, dark, and highly legible, ensuring permanent identification. These flawless physical characteristics demonstrate the machine's capability to deliver consistent, repeatable results that meet the strict compliance standards required by demanding industrial clients.

Industry Applications & Lifecycle Support

Targeted Manufacturing Sectors

Engineered specifically for high-standard wire harness processing, this automated terminal crimping and dispensing solution perfectly aligns with the rigorous demands of advanced manufacturing sectors. It is highly suitable for the automated production of new energy vehicle (NEV) wiring, complex medical device cabling, aerospace communication harnesses, and high-end industrial control systems. These critical applications require absolute reliability, where every electrical connection must withstand significant mechanical vibration, thermal fluctuations, and chemical exposure over extended periods.

Enterprise-Grade Service Framework

To support continuous operational excellence, we provide a standardized, enterprise-grade full-lifecycle service framework tailored for large-scale manufacturing facilities. From the initial on-site installation and meticulous mechanical calibration to comprehensive operator training, our technical support ensures your team can maximize the machine's capabilities from day one. A rapid-response maintenance protocol and a reliable, globally accessible supply chain for spare parts guarantee minimal downtime. This dedicated support structure keeps your production schedules on track, protects your capital investment, and ensures your manufacturing output remains consistent year after year.
