When evaluating machinery for continuous production lines, precision and mechanical reliability are paramount. The JMK Automatic Computerized Pipe Cutting Machine is engineered to deliver exact specifications for demanding industrial environments. Driven by an advanced hybrid stepping motor and a high-speed microprocessor, this unit ensures that every cut meets stringent dimensional tolerances. The quiet hum of the hybrid stepping motor contrasts with the immense driving force it applies to the material. When handling heavy-duty high-pressure oil pipes, the machine maintains a firm, unwavering grip, ensuring the cut is executed with absolute perpendicularity.
The integration of a 10-round overlaying belt type tube feeding mechanism provides a tactile, non-deforming hold on delicate materials, moving them through the cutting zone with consistent tension. This prevents material slippage and eliminates the risk of crushing fragile corrugated or PU structures. Operators interact with the machine through a highly responsive 7-inch color screen display, which offers crisp visual feedback and intuitive navigation across the 4-axis motion control board. With the capacity to store up to 100 distinct operational programs (Serial number 00-99), facility managers can rapidly switch between different production runs without manual recalibration. The physical construction, weighing in at a solid 56KG, dampens operational vibrations, which is crucial for maintaining the 0.01mm cutting length precision over thousands of cycles. Below is the comprehensive breakdown of the machine's technical specifications, detailing exact capacities and physical dimensions.
Equipment Name | Automatic Multifunctional Pipe Cutting Machine |
Weight | 56KG |
Overall Dimension | L560xW510xH480mm |
Input power | AC220V 50/60HZ |
Overall power | 600W |
Rated power | 400W |
Equipment Function | 400W |
Auxiliary function | Automatic tube in/out,timed start,point adjustment |
Pipe feeding method | 10 rounds of overlaying belt type tube feeding |
Cutting length | 0.01mm-99999.99mm |
Cutting Diameter | Φ3mm-Φ25mm |
Capacity/hour | About 7000 times |
Drive structure | Hybrid stepping motor,high-speed microprocessor |
Program storage | Serial number 00-99 |
Display mode | 7-inch color screen display |
Control system | 4-axis motion control board |

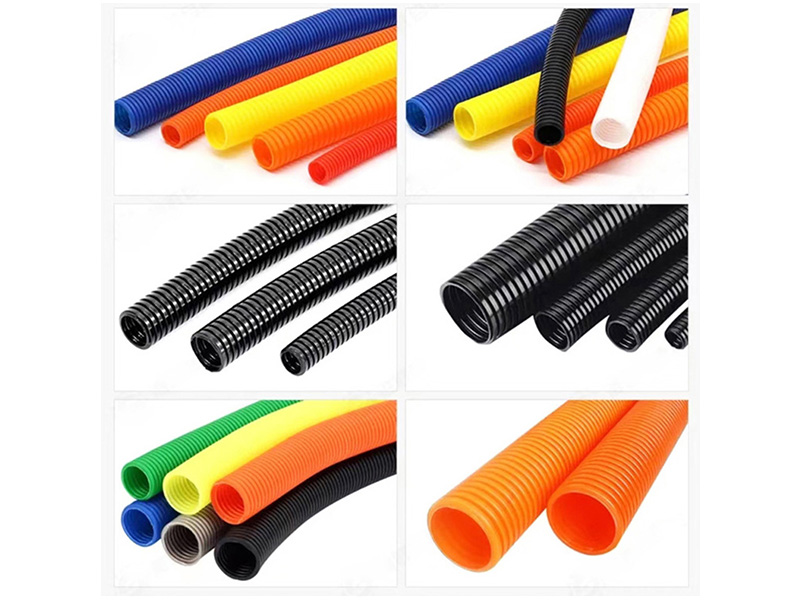

This automated pipe cutting equipment is purpose-built to handle a diverse array of complex tubing materials. Facilities processing round plastic hoses, corrugated hoses, PVC pipes, high-pressure oil lines, rubber tubing, and PU pipes will find this machine highly adaptable. The specialized blade mechanism ensures that each cut results in a smooth, burr-free edge, maintaining the exact structural integrity of the original tube without any pinching or material distortion. Operators will notice the immediate difference in the tactile quality of the finished products; the custom-grade blades slice through dense rubber and reinforced PU without leaving frayed threads or jagged plastic remnants.
A standout feature of this model is its integrated visual control system. This optical monitoring setup continuously tracks the cutting process in real-time, providing immediate feedback to the control board to maintain absolute precision. The visual control system acts as an untiring inspector, its sensors constantly analyzing the feed rate and alignment. If a corrugated pipe begins to twist out of specification, the 4-axis motion control board instantly compensates, ensuring the final product matches the programmed parameters perfectly. By visually confirming the alignment and diameter of the tubing—especially critical when processing corrugated hoses with diameters up to 35mm—the system dramatically reduces material waste and prevents defective batches. The 10-round overlaying belt feeds the material with a steady grip that distributes pressure evenly, ensuring that even soft rubber or brittle PVC maintains its shape during transit.
Designed for high processing efficiency and stable control, the machine executes automated tube input and output sequences flawlessly. The timed start and point adjustment auxiliary functions allow operators to set precise operational windows, enabling unattended, continuous batch processing. Achieving up to 7000 cuts per hour, this system significantly accelerates production timelines. The physical footprint of the machine remains compact, allowing it to be integrated into existing assembly lines without requiring extensive spatial modifications. Safety mechanisms are inherently built into the motion control architecture, protecting operators from moving parts while maintaining rapid cycle times.
Beyond the mechanical capabilities of the cutting machine, long-term operational stability requires dedicated technical backing. We provide a complete ecosystem of support designed to keep your production lines running without interruption. From initial setup to daily operation, every aspect of the user experience has been optimized for minimal downtime and maximum output. Integrating this computerized cutting machine translates directly into measurable efficiency gains. The intuitive interface drastically reduces the learning curve, lowering the costs associated with training new operators.
