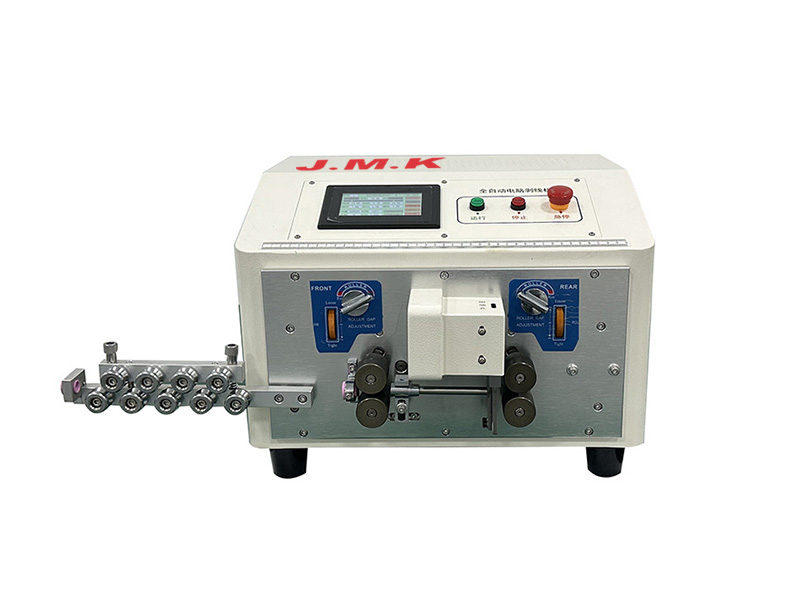

• Engineered specifically for processing large size wire by automatic wire cutting and stripping, this machine handles complex industrial demands effortlessly. It is highly capable of processing single-core, multi-core, and thick sheathed cables, ensuring your production line maintains consistent output even with challenging materials, ultimately reducing material waste and improving overall yield.
• Equipped with an intuitive computerized control system and tactile button operation, the unit guarantees stable working performance while drastically lowering the learning curve for operators. The responsive interface provides immediate visual feedback on the digital display during setup, ensuring precise parameter adjustments without guesswork, allowing new staff to achieve expert-level proficiency in a fraction of the usual training time.
• Achieve high speed wire stripping with unparalleled flexibility. Operators can randomly set the exact dimensions for the wire head, wire end, and total length within the specified wire cutting range. This allows for rapid adaptation to diverse manufacturing specifications without the need for time-consuming mechanical retooling or manual measuring.
• The speed of wire feeding, cutting, and stripping could be separately set to reach the best effect of stripping for delicate or tough insulations. This granular control prevents any unwanted friction or damage to the internal conductive copper cores, maintaining absolute electrical integrity while achieving a clean, smooth cut that feels precise to the touch.
• It has the function setting total quantity, bundle quantity, time postpone, middle stripping, and etc. These advanced programming capabilities facilitate comprehensive batch management, significantly reducing manual counting errors and streamlining downstream assembly processes for large-scale production runs.
• Powered by a sophisticated motor drive using the subdivision method, the machine delivers exact mechanical movements with high precision and long service life. Coupled with imported tungsten steel or high-speed steel blades, this durable drive system guarantees minimal vibration noise and extremely low failure rates during continuous, high-load manufacturing cycles.
• Maximize operational efficiency with the integrated memory module, where 100 kinds of different wire data can be stored in the system. This one-touch recall feature eliminates repetitive manual input, significantly shortening changeover times when switching between different cable types on the busy factory floor.
Name | Automatic wire cutting and stripping large size wire |
Blade material | Imported tungsten steel/high speed steel |
Wire range | 0.1-10mm**2wires |
Cutting length | 10-99999mm |
Slitting length | 0.5-30mm(Other size can be special ordered) |
Stripping length | 0.5-30mm(Other size can be special ordered) |
Cutting precision | ±（0.2%*L+1）mm |
Capacity | 6000-15000 pcs/h |
Tool materials | Other size can be special ordered |
Drive | 4 wheels driven |
Feeding speed | 2m/s |
Voltage | 220V 50/60HZ |
Weight | 45kg |
This large size wire cutting and stripping equipment is engineered to meet the demanding requirements of modern industrial manufacturing. It is widely adaptable to a vast array of wire types, including single-core wires, complex multi-core cables, heavy-duty sheathed lines, and specialized large-square cables. Whether your facility focuses on automotive wiring harness assembly, advanced telecommunications infrastructure, or industrial electronics, this machine delivers the precision required to process thick insulation materials. The mechanical action leaves a clean, burr-free finish that is essential for secure terminal crimping and reliable electrical connections in final assemblies.
To maximize your facility's throughput, this equipment features high compatibility for direct system integration. It is specifically structured to interface effortlessly with external automated systems such as motorized wire feeding racks, precision wire straighteners, and automatic coiling or stacking machines. By linking these components, facility managers can establish a fully automated, continuous-flow production line that reduces manual handling, minimizes physical strain on operators, and exponentially increases daily output without bottlenecks.
Understanding that uptime is critical for profitability, we have streamlined the maintenance process through standardized, modular consumable designs. The machine utilizes readily available, quick-change tooling components, including durable guide wheels and precision-ground blades. This modular approach significantly lowers long-term maintenance expenses and allows in-house technicians to perform rapid parts replacement. The satisfying, tactile click of snapping a new blade module into place ensures correct alignment instantly, getting your production back online in minutes rather than hours.
Investing in heavy-duty processing machinery requires reliable backing, which is why we provide comprehensive after-sales service and technical support. From the moment of delivery, our clients receive detailed installation guidance and thorough operational training for their floor staff. We ensure your team is confident in navigating the microcomputer interface and performing routine maintenance tasks safely. Backed by a dependable warranty and a steady supply of original factory spare parts, your equipment investment is protected against unforeseen downtime, ensuring your production lines remain active and profitable year after year.
