Automatic Computerized Ribbon Cable Cutting And Stripping Machine

Product Introduction:

The Automatic Computerized Ribbon Cable Cutting And Stripping Machine is engineered to resolve critical bottlenecks in modern wire harness manufacturing. Whether outfitting an automotive assembly facility, producing internal wiring for household appliances, scaling up industrial control panel production, or assembling consumer electronics, this equipment delivers consistent, repeatable results. By integrating advanced microcomputer controls, operators can manage complex wire processing tasks with a few keystrokes, eliminating the prolonged downtime typically associated with mechanical blade changeovers.

Core Processing Capabilities & Versatility

This system offers a true one-stop processing environment. It seamlessly handles the complete cycle of cutting, splitting, and stripping, including precise middle stripping functions required for complex junction points. The machine adapts flexibly to various multi-core and specialized ribbon cables. Operators will appreciate the tactile, responsive button operation on the control panel, which allows for immediate adjustments to wire head, tail, and total length dimensions without interrupting the active workflow.

Automation, Precision, and Component Durability

At the heart of the machine lies a high-precision motor drive that operates with a steady, quiet hum, ensuring long-term reliability even during high-frequency production shifts. The cutting mechanism utilizes imported tungsten steel and high-speed steel blades. These materials maintain a razor-sharp edge, slicing through tough insulation with a crisp, clean action that leaves the underlying copper conductors completely untouched and free from scoring. With the capacity to store up to 100 unique wire processing presets, facility managers can switch between different product runs instantly.

Key Operational Features

• Designed for ribbon cable processing, including cutting, splitting, and stripping;

• Easy-to-use with computerized control and button operation;

• High-speed stripping with adjustable wire head, tail, and total length;

• Independent speed settings for feeding, cutting, and stripping for optimal results;

• Supports quantity setting, bundling, delay timing, and middle stripping;

• High-precision motor drive with long service life;

• Stores up to 100 wire processing presets;

• Two slitting modes: punching and sliding cut.

Technical Parameters:

Evaluating the precise specifications of your wire processing infrastructure is essential for maintaining strict quality control and meeting demanding output targets. The following data sheet details the exact operational capacities, physical tolerances, and power requirements of the machine. From the impressive 1000-3000 pieces per hour capacity to the highly adaptable stripping lengths, every parameter is engineered to support rigorous, continuous manufacturing cycles without compromising on the physical integrity of the finished cable.

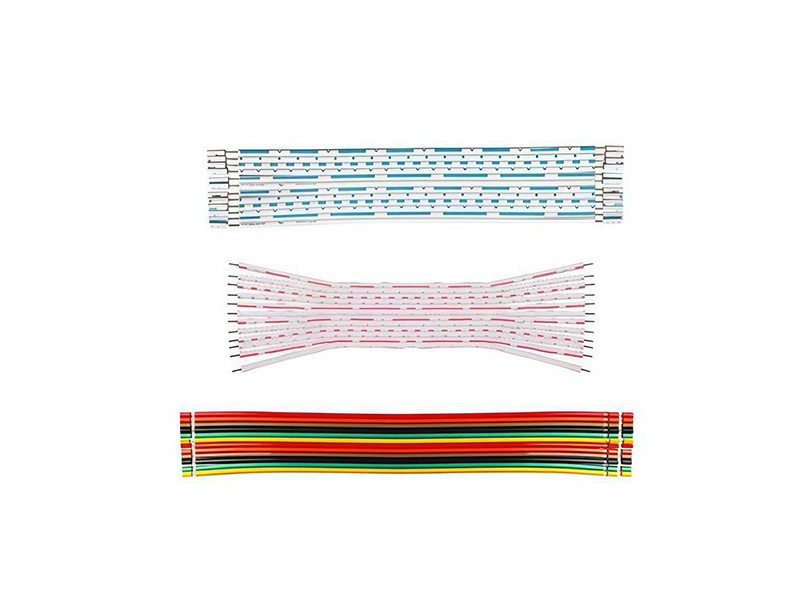

Wire Case:

The true measure of any automated cable processing equipment lies in the physical quality of its output. When inspecting the ribbon cables processed by this machine, quality assurance teams will immediately notice the exceptionally clean stripping margins. The insulation is severed cleanly without any jagged edges, stretching, or thermal distortion. Furthermore, the exposed copper strands remain tightly bundled and completely free from the micro-scratches or fraying that often plague inferior cutting mechanisms. This flawless finish ensures secure, highly conductive terminations when the wires are subsequently crimped or soldered into their final housing assemblies.

Comprehensive Service & Technical FAQ

Procuring industrial manufacturing equipment is a long-term investment. To ensure your production lines remain active and profitable, we provide extensive after-sales support, including detailed installation training, ongoing calibration guidance, and a reliable supply chain for original replacement parts like our imported tungsten steel blades. Below are answers to common operational inquiries to assist in your procurement evaluation.

How intuitive is the initial equipment setup and parameter debugging?

The microcomputer control system is designed to drastically lower the operational learning curve. Instead of manual mechanical adjustments, operators input the desired cutting length, stripping margins, and speed settings directly into the digital interface. The machine's ability to save 100 distinct presets means that once a specific wire profile is debugged, it can be recalled instantly for future runs, virtually eliminating setup time during product changeovers.

Can this machine accommodate wire specifications outside the standard AWG24-26 range?

While the standard configuration is optimized for AWG26# (1-15pin) and AWG24# (1-12pin) ribbon cables, the equipment architecture allows for specialized customization. If your facility processes unique wire gauges or non-standard insulation materials, the feeding mechanisms and blade profiles can be tailored to meet those specific dimensional requirements upon consultation.

What is the expected lifespan and maintenance routine for the cutting tools?

The blades are forged from imported tungsten steel and high-speed steel, materials chosen specifically for their exceptional hardness and wear resistance. Under normal operational loads processing standard PVC or Teflon insulation, these blades maintain their edge for hundreds of thousands of cycles. Routine maintenance involves simple periodic cleaning of the blade housing and ensuring the 0.3Mpa-0.5Mpa air supply remains free of moisture and debris to guarantee optimal pneumatic performance.
