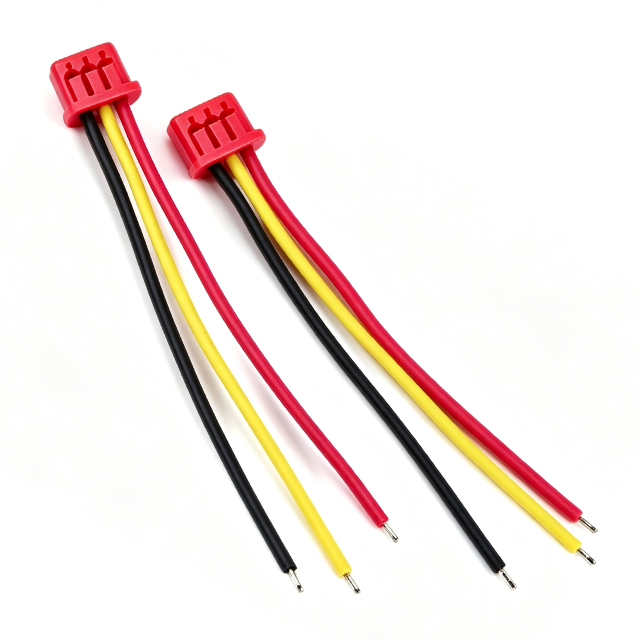

JM-601A One end crimping+connector housing insertion the other end tinning

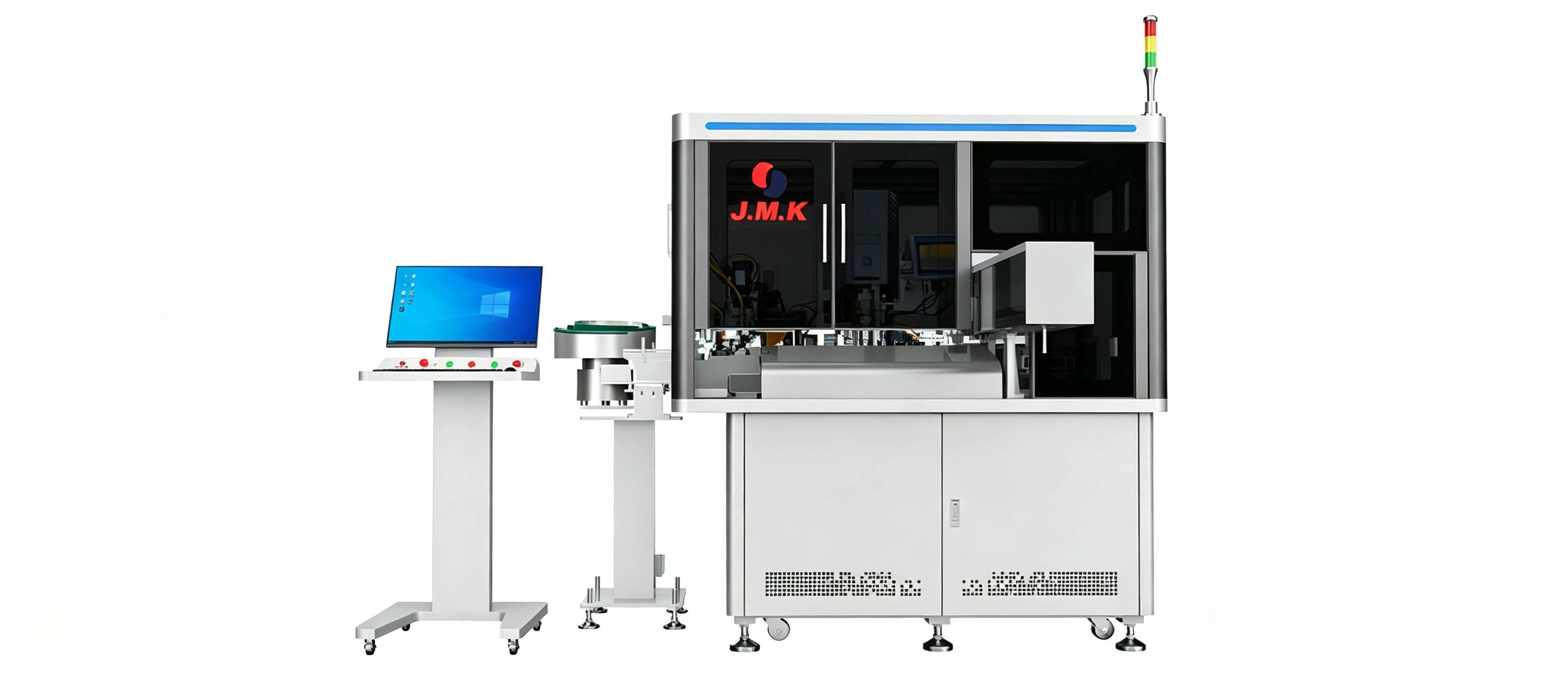

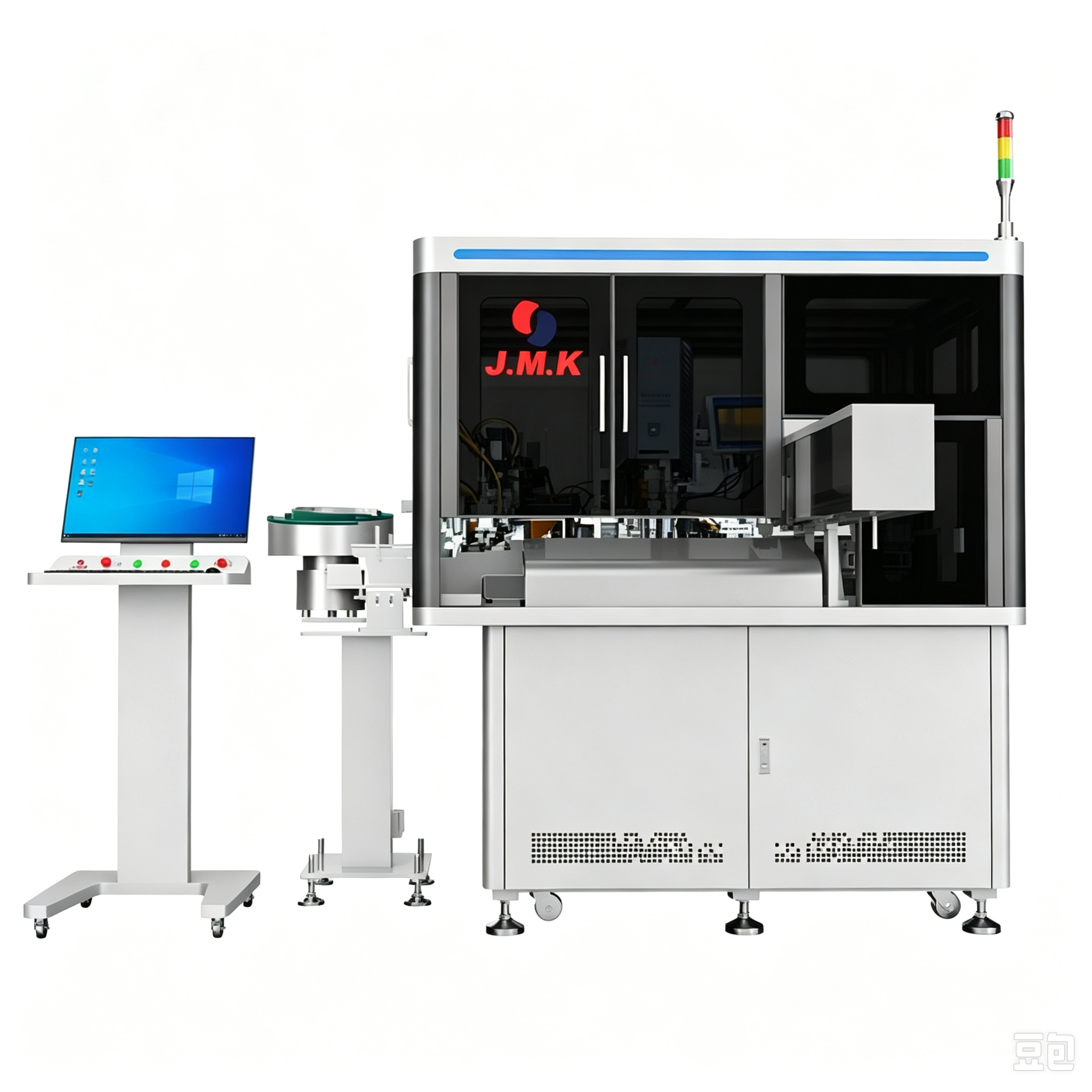

The JM-601A automatic single-end housing insertion and single-end tinning machine utilizes a precision servo drive mechanism and PC human-machine interface digital control for easier production management. The JM-601A can produce wire lengths ranging from 45 to 9999 mm (customizable), supports 1 to 8 wire colors, and processes wire sizes from AWG #18 to #28.
It also can be equipped with an optional crimp force monitoring system and a CCD visual inspection system, which enable real-time display and comparative analysis of product images and crimping force curves. If a defective crimp is detected, the system triggers an alarm and automatically rejects the defective part. With full-process quality monitoring during processing, it significantly reduces labor costs, ensures product quality, and boosts production efficiency.

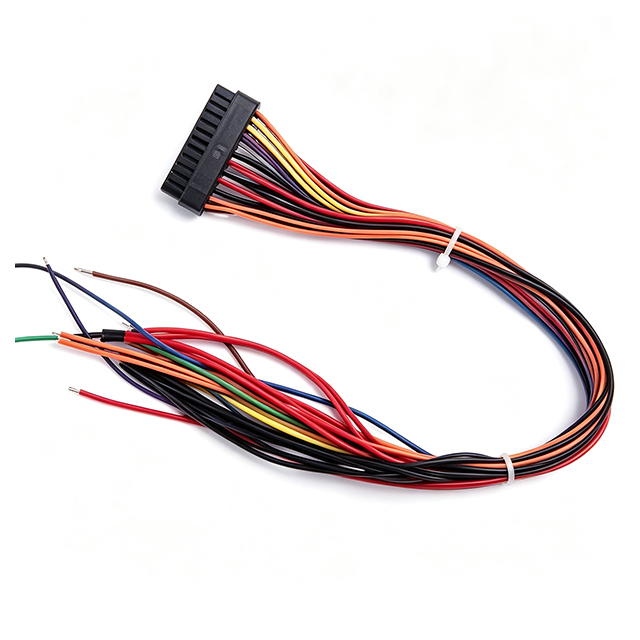

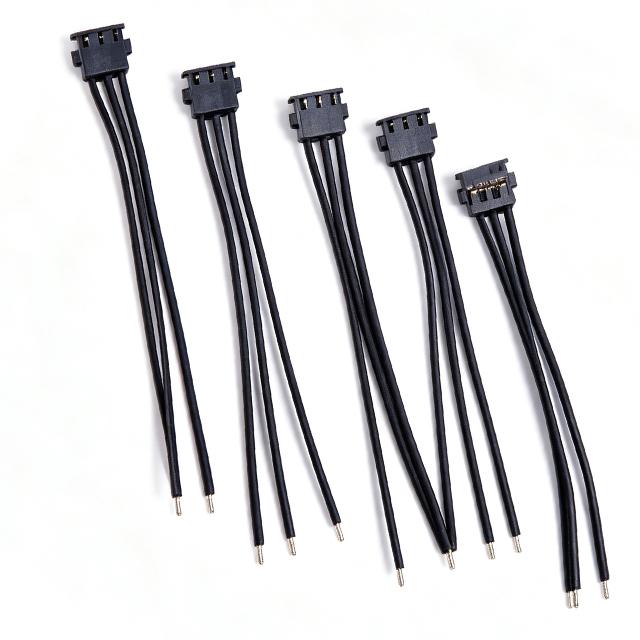

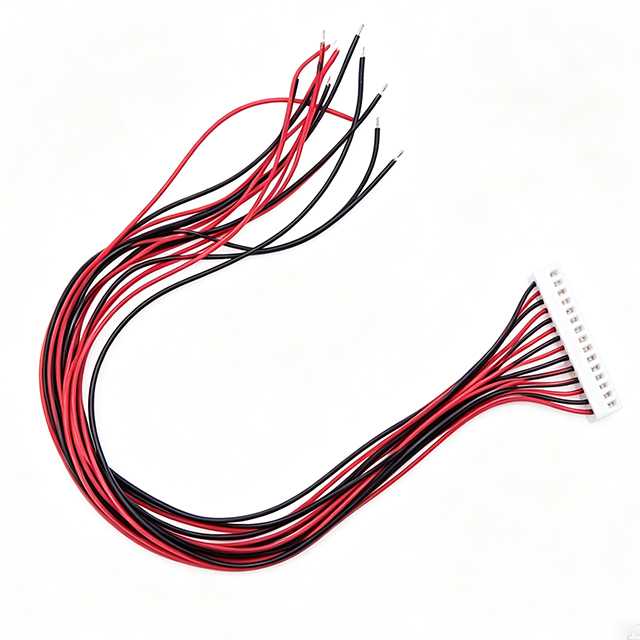

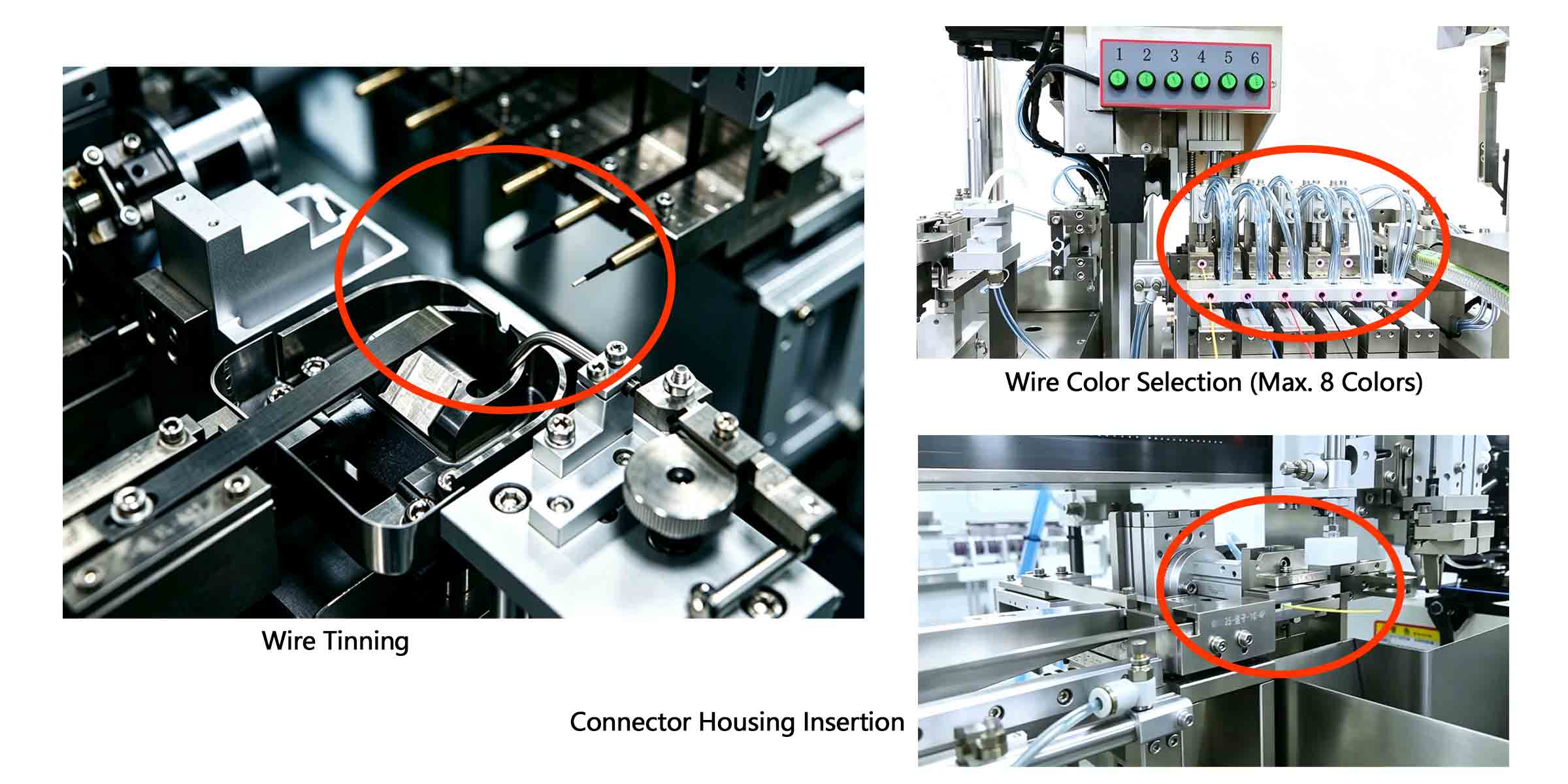

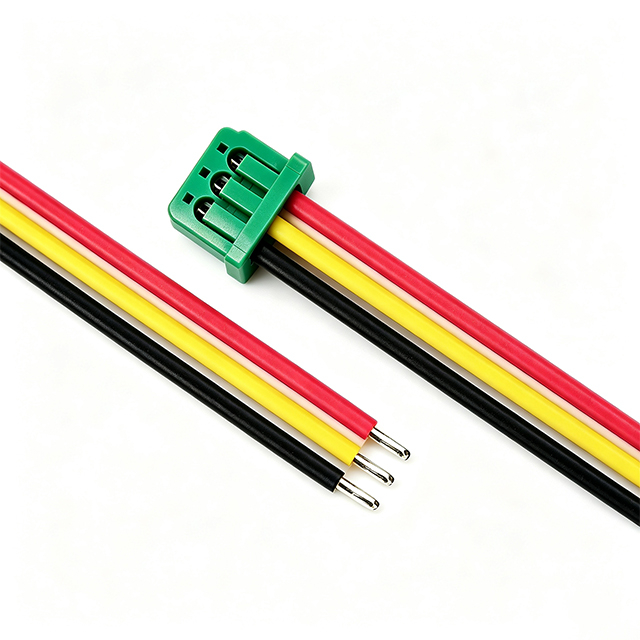

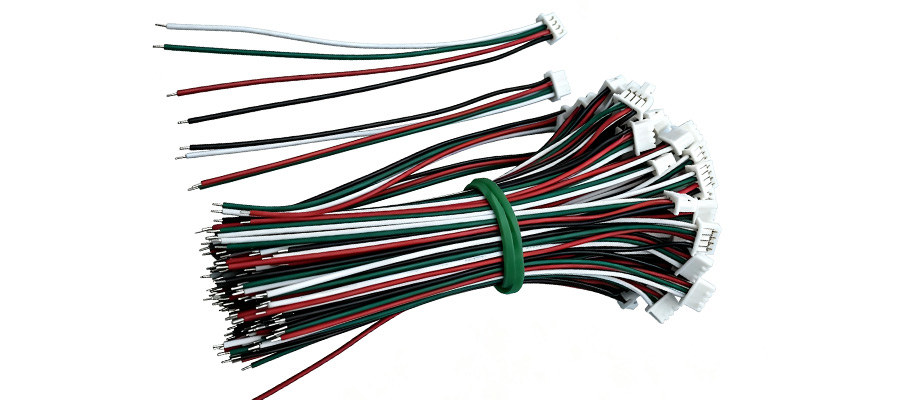

Wire fixed-length cutting, double-end stripping, single-end crimping, single-end housing insertion, and single-end tinning.

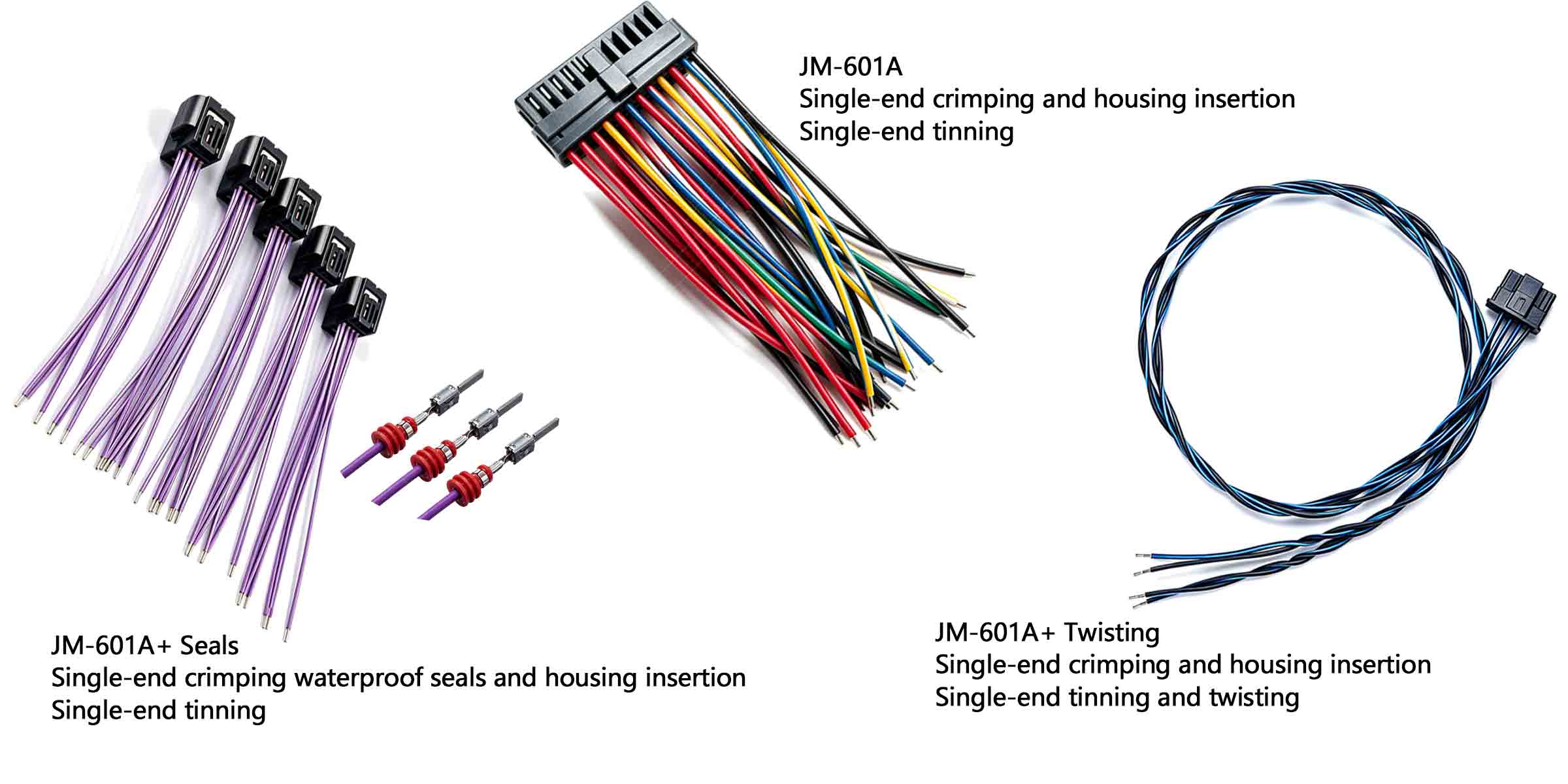

Supports non-standard customization and flexible expansion of various additional features: wire twisting, soldering, waterproof plug insertion, heat-shrink tubing insertion, and marker tube insertion.
Model | JM-601A One end crimping+connector housing insertion the other end tinning | |
Power supply | AC220V 50/60Hz 10A | |
Speed | Approx. 2.0 sec/strip (at shortest tangent) | |
Gas source | 0.5MPa,approx. 170N/min | |
Wire color | 1–8 (Standard 6 colors) | |
Can cut off the length | 45–9999mm(customizable) | |
Can cut off precision | ± 0.5%×L | |
Stripping length | Stripping length | |
Machinable wire diameter | Awg #18–#28 (Customizable) | |
Crimp ability | 2T servo crimping machine × 1 set | |
Size | W1600xD1500xH1900mm | |
Weight | About 450kg | |
Optional | CCD visual inspection;pressure monitoring;waterproof plug base station | |
