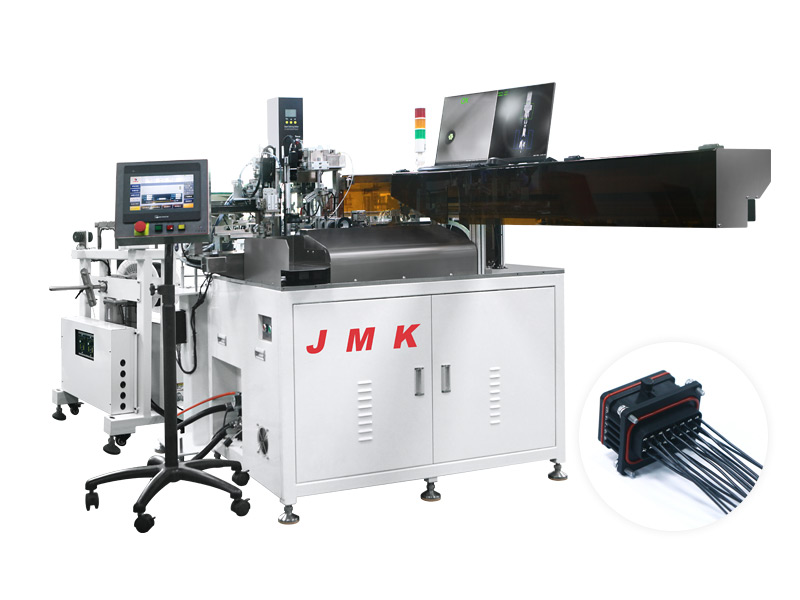

The JMK automatic single end welding terminal insertion machine transforms complex wire harness processing into a continuous, operator-free workflow. Engineered for precision, this unit operates with a steady, rhythmic mechanical motion, supporting bulk terminals and featuring advanced manipulator automatic feeding to eliminate repetitive manual loading.
At its core, the system executes a highly synchronized sequence. The basic functions include: wire cutting and stripping, welding, connector insert housing, CCD cross-section visual inspection, welding inspection, and we fully support non-standard customization for specialized production lines. By integrating these multiple processes into a single footprint, facility managers can eliminate multi-stage material transfer, reducing cycle times and minimizing the risk of handling errors.
Whether you are processing delicate signal cables or heavy-duty power lines, the machine's rigid steel frame minimizes vibration, ensuring that every cut and weld is executed with absolute structural integrity. We also provide free pre-purchase sample testing for your specific wires and terminals, allowing you to verify the exact crimp and weld performance before integration.
• Features a fully closed-loop flexible wire feeding system with a rubber belt mechanism to protect the wire surface and enhance feeding accuracy.
• Utilizes imported servo motor drives to ensure high precision, efficiency, and operational stability.
The tactile rubber belt grips the insulation firmly without leaving indentation marks, preserving the aesthetic and functional integrity of the cable. The imported servo motors deliver quiet, rapid acceleration, translating into consistent output rates even during prolonged operational shifts.
• Runs on an industrial-grade computer operating system, offering a user-friendly and intuitive interface.
• Supports both manual and automatic debugging modes, making equipment setup faster and more efficient.
Operators interact with a responsive, full-color touch panel that provides clear visual feedback of the entire production cycle. This digital environment allows for rapid changeovers; production programs and material parameters can be switched in under 5 minutes, maximizing uptime when transitioning between different harness batches.
• Incorporates a network-driven system to meet the rigorous industrial processing demands of photovoltaic wires.
• Equipped with a servo-driven crimping system that maintains a stable compression ratio, fully meeting cross-sectional analysis standards.
Beyond standard crimping, the built-in smart vision and defect detection system acts as an uncompromising gatekeeper. The CCD cross-section visual inspection and real-time welding monitors instantly identify missing strands, skipped crimps, or insufficient air pressure. This strict monitoring guarantees that every processed harness leaves the facility with zero defects, ready for immediate field deployment.

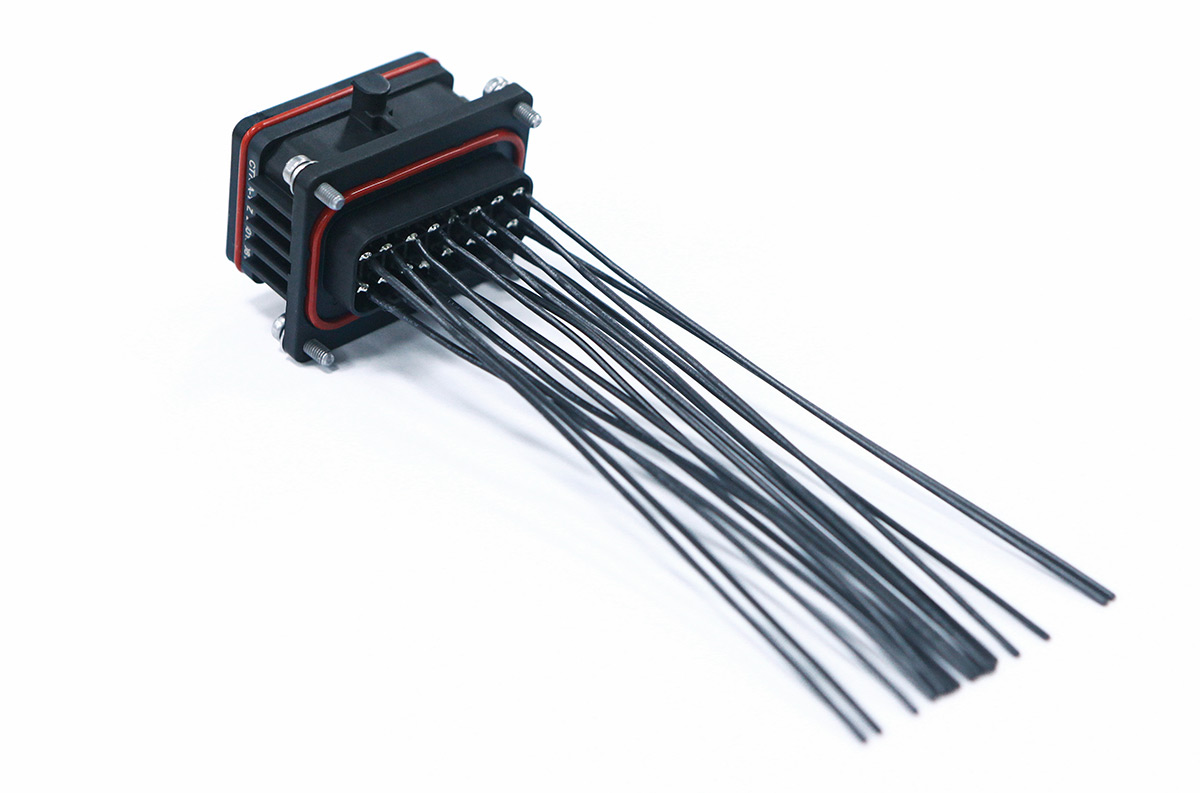

The finished samples demonstrate the machine's capability to produce tight, oxidation-resistant connections with highly conductive contact points. These precisely assembled harnesses are engineered to perform in demanding environments. They perfectly adapt to the strict standards required by the New Energy Vehicle (NEV) sector, solar photovoltaic installations, smart home appliances, and aerospace applications. By ensuring a waterproof and highly conductive joint, the equipment helps manufacturers meet stringent regulatory and safety certifications.
Each completed harness exhibits a clean, uniform appearance with perfectly seated connector housings and securely welded terminals. The visual consistency across thousands of samples reflects the mechanical stability of the insertion and welding modules. For industries where a single faulty connection can lead to system failure—such as in aerospace or automotive electronics—this level of repeatability is essential. The machine handles varying insulation thicknesses and wire gauges with ease, ensuring that the final product maintains excellent tensile strength and electrical conductivity under extreme temperature fluctuations and mechanical stress.
Understanding that every production floor has unique spatial and operational requirements, we offer deep non-standard customization plans. Whether you require modifications for unusually shaped terminals, specialized crimping molds, or extended mechanical strokes, our engineering team tailors the equipment to fit your exact specifications.
Service Aspect | Details & Value Delivered |
|---|---|
Pre-Purchase Validation | We provide comprehensive free sample testing using your specific wire materials and terminals to guarantee compatibility before commitment. |
Secure Packaging | Every machine is secured in standardized export wooden crates, protecting sensitive servo motors and optical lenses from moisture and transit shock. |
Technical Enablement | Includes detailed English operation manuals, remote video technical guidance, and step-by-step installation and calibration support. |
Our rapid delivery protocols ensure that your customized machinery arrives on schedule, minimizing facility downtime. With our dedicated remote support, your operators will master the equipment quickly, ensuring a smooth transition from installation to full-scale, defect-free production.
