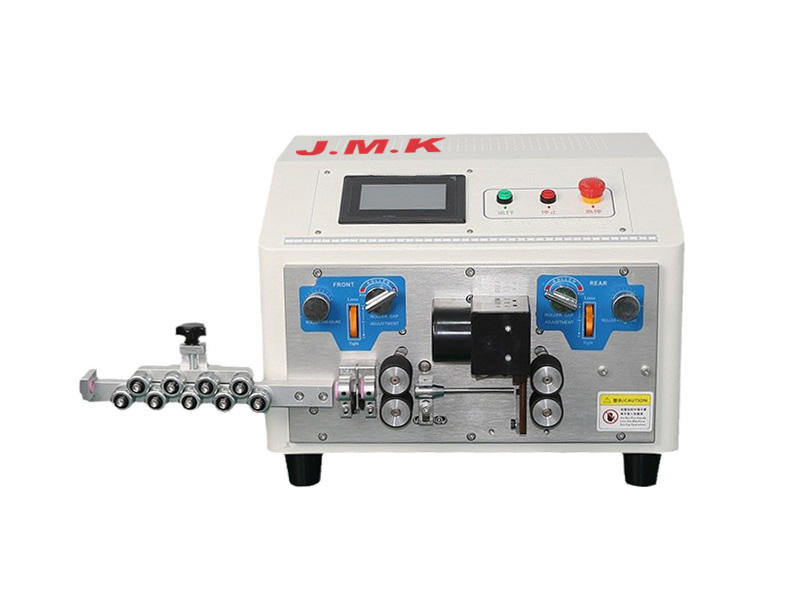

Equipping your production floor with the right wire processing equipment fundamentally transforms daily throughput and precision. This Automatic Wire Cutting and Stripping Machine is engineered to deliver a fluid, high-speed operation that minimizes manual intervention while maximizing output consistency. From the crisp, clean sound of the imported tungsten steel blades slicing through insulation to the rhythmic feeding of dual wires, every mechanical movement is optimized for heavy-duty manufacturing environments.

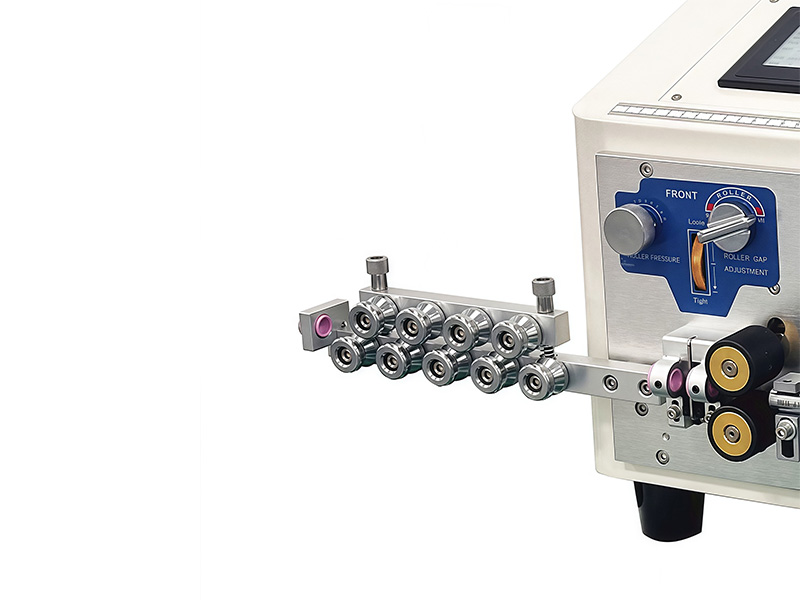

Designed to handle multiple wires at the same time, this equipment instantly elevates your facility's efficiency. By processing up to two 2.5mm² wires concurrently, operators can effectively double their hourly output. The dual-feed mechanism maintains a firm, non-damaging grip on the wire jackets, ensuring that the internal copper strands remain perfectly intact and unmarred during the rapid stripping cycle.
Transitioning between different wire batches is effortless thanks to the intuitive microcomputer control system. The tactile push-button interface offers stable working performance and is exceptionally easy to operate, drastically reducing the learning curve for new technicians. Furthermore, the system can store up to 100 kinds of different wire data profiles. This allows operators to achieve one-touch recall of specific processing parameters, enabling rapid changeovers and eliminating manual data entry errors across diverse production runs.
Every aspect of the cut can be tailored to exact specifications. High-speed wire stripping, wire head, tail, and total length can be set arbitrarily within the machine's extensive wire cutting range. To achieve the absolute best stripping effect, the wire feeding, cutting, and stripping speeds can be set separately. The core motor drive adopts an advanced subdividing method, guaranteeing high precision, minimal vibration, and an exceptionally long operational life. Additional settings, including total amount, number of bundles, delay time, and intermediate stripping, provide total control over complex wire harness designs.
Beyond standalone operation, this machine is built to function as a crucial node in an automated workflow. It effortlessly connects with external dereelers, wire straighteners, and automated collection equipment. This compatibility supports the transition toward smart factory environments, allowing for fully automated upstream and downstream production without bottlenecks.
The structural integrity and processing capability of this equipment are defined by its rigorous technical specifications. Operating at a feeding speed of 2 meters per second, driven by a robust 4-wheel mechanism, it easily achieves a capacity of 6,000 to 15,000 pieces per hour depending on the wire length. The imported tungsten steel and high-speed steel blade materials undergo strict factory testing to withstand the friction of continuous, high-intensity production. With a cutting precision of ±(0.2%*L+1)mm, you can trust that every single wire will meet the exact tolerances required for critical electrical connections. Review the complete technical data below to verify compatibility with your facility's operational requirements.
Name | Automatic Wire Cutting and Stripping Machine |
Blade material | Imported tungsten steel/high speed steel |
Wire range | 0.1-2.5mm2*2wires |
Cutting length | 10-99999mm |
Slitting length | 0.5-30mm(Other size can be special ordered) |
Stripping length | 0.5-30mm(Other size can be special ordered) |
Cutting precision | ±（0.2%*L+1）mm |
Capacity | 6000-15000 pcs/h |
Tool materials | Other size can be special ordered |
Drive | 4 wheels driven |
Feeding speed | 2m/s |
Voltage | 220V 50/60HZ |
Weight | 45kg |
Investing in automated wire processing equipment requires confidence in both the machine's versatility and the long-term support backing it. We provide a complete ecosystem of services to ensure your production lines remain active, efficient, and highly profitable.
This cutting and stripping machine is widely adopted across high-standard wire harness processing sectors. It is the ideal solution for automotive wire manufacturing, aerospace electrical systems, railway transit infrastructure, home appliance assembly, and industrial control cabinet wiring. The clean, precise cuts ensure secure crimping and soldering, which is vital for industries where electrical failure is simply not an option.
We understand that seeing is believing. We encourage prospective buyers to send in their specific wire samples for free trial cutting and stripping validation. By physically inspecting the cleanly stripped ends and verifying the exact lengths, you can be absolutely certain of the machine's capability before making a commitment. For unique wire diameters or non-standard processing requirements, our engineering team is ready to develop exclusive, customized tooling solutions tailored to your exact project demands.
Maintaining peak operational efficiency requires quick access to wear parts. We maintain a comprehensive inventory of standardized original accessories, including specialized guide tubes, durable transmission wheels, and custom V-shaped blades. This streamlined procurement of consumables significantly reduces long-term maintenance costs and prevents unexpected production halts.
Our commitment extends far beyond the initial installation. We provide long-term warranty protection, professional equipment operation training for your floor staff, and a rapid-response factory spare parts replacement service. By ensuring your technicians are fully confident in operating and maintaining the system, we help you secure a worry-free, continuous manufacturing cycle.
