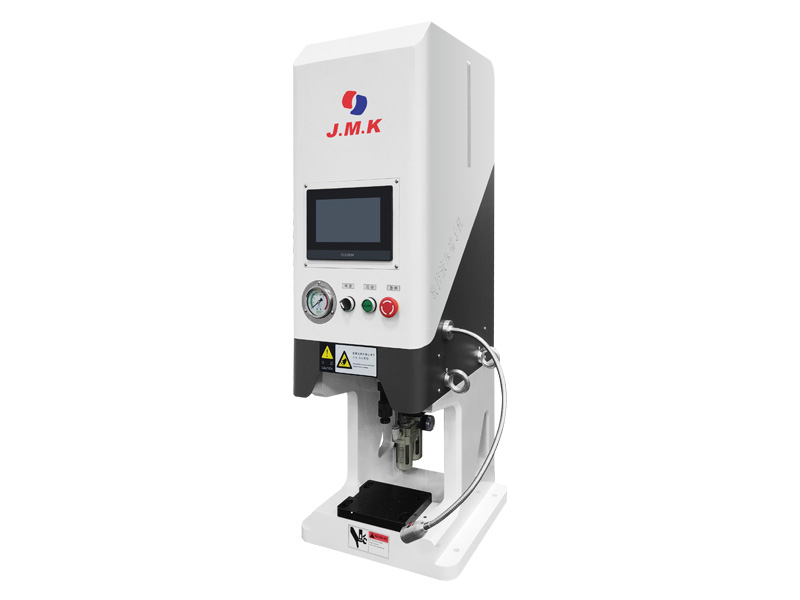

6T/10T/20T/30T Pneumatic Hydraulic Terminal Crimping Machine

Product Overview

Engineered for precision wire harness processing, the 6T/10T/20T/30T Pneumatic Hydraulic Terminal Crimping Machine delivers consistent, void-free connections for critical electrical assemblies. In modern electrical manufacturing, the integrity of a crimp dictates the safety and performance of the entire system. Constructed with premium pneumatic components and a highly sensitive mechanical oil pressure gauge, this equipment maintains optimal sealing and exceptional impact resistance even under continuous, heavy-duty operation. The lubrication-free cylinder design significantly extends the operational lifespan of the core mechanism, drastically reducing maintenance downtime and associated labor costs on busy production floors.

Operators interface with a highly responsive 7-inch color touch screen, which offers crisp visual feedback, intuitive parameter adjustments, and clear diagnostic readouts. For advanced facility integration, the system supports optional barcode scanners and MES (Manufacturing Execution System) connectivity. This digital bridge enables real-time production data tracking, error-proofing, and intelligent workflow management, ensuring every crimp is documented and traceable. Ergonomics and operator protection are prioritized through a sophisticated dual-start mechanism. Users can actuate the cycle via a tactile start button on the panel or a heavy-duty foot switch on the floor, effectively freeing both hands for precise cable positioning and alignment. This hands-free capability dramatically boosts throughput without compromising accuracy. Furthermore, the machine can be configured with an optional transparent safety shield and an automatic rebound mechanism, ensuring maximum physical protection during rapid, repetitive crimping cycles.

Specification:

Selecting the correct tonnage ensures optimal mechanical strength and electrical conductivity in your wire terminations. Each model in this series is meticulously calibrated to deliver exact hydraulic force, ranging from a compact 6-ton unit ideal for standard electronics to a massive 30-ton powerhouse designed for heavy-duty energy applications. The consistent stroke lengths—50mm for lighter models and 100mm for heavier units—provide ample spatial clearance for inserting complex, multi-core terminal geometries without bending or fraying the exposed copper strands. Operating on standard 220V power and requiring only 0.5 to 0.8 Mpa of air force, these machines integrate smoothly into existing manufacturing lines without requiring extensive or costly infrastructure modifications. Capable of processing up to 1500 pieces per hour, the system is built to maximize your operational efficiency while maintaining strict quality tolerances. Review the comprehensive technical parameters in the table below to match our crimping solutions with your specific production demands, wire gauges, and facility requirements.

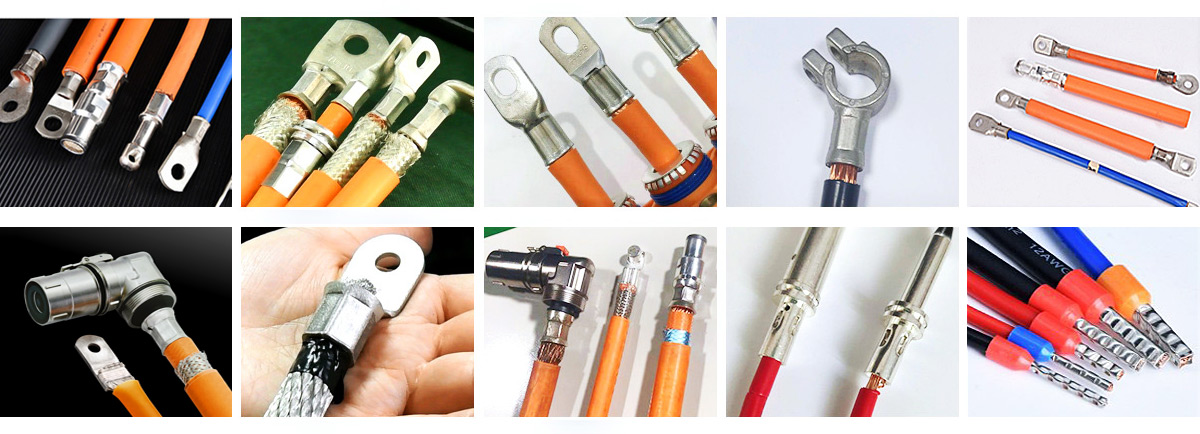

Sample Display & Applications

The versatility of this pneumatic hydraulic crimping machine is vividly demonstrated through its extensive terminal processing capabilities. Covering a broad wire range from 2.5mm² up to 240mm², it is perfectly engineered to meet the stringent demands of modern, high-current electrical applications. This includes processing the thick, inflexible cables used in new energy vehicle (NEV) wiring harnesses, electric vehicle charging piles, heavy-duty industrial control panels, and large-scale consumer home appliances. When handling these substantial cables, the machine provides a smooth, controlled compression that eliminates air gaps and prevents future oxidation within the joint.

A core operational advantage lies in its rapid-response die compatibility and intelligent quick-change system. The machine seamlessly accommodates an extensive array of mold profiles, including standard hexagonal dies, open hexagonal dies, quadrilateral dies, four-point indenters, and specialized upper and lower stamping dies. The quick-release mechanism provides a satisfying, secure metallic click when locking dies into place, allowing technicians to transition between different terminal specifications in a matter of seconds. This tool-less interchangeability eliminates the need for prolonged setup times, reduces the physical strain on operators, and ensures a frictionless, highly productive shift across diverse production batches.

Manufacturing Standards & Support

As a direct source manufacturer, we implement rigorous quality control protocols to ensure every pneumatic hydraulic terminal crimping machine meets and exceeds global industrial standards. We understand that equipment reliability is the backbone of your production schedule. Therefore, we have established a comprehensive quality and support ecosystem to maximize your return on investment:

• Authoritative Certification & Testing: Each unit undergoes exhaustive pressure testing under simulated load conditions and a 100% functional inspection prior to dispatch. Our facilities carry international certifications, including CE and ISO, reflecting our commitment to superior engineering and operational safety.

• Reliable Warranty & Delivery: Every machine is backed by a solid 12-month full-machine warranty, coupled with expedited delivery schedules to meet urgent project timelines and minimize supply chain disruptions.

• Deep Customization (OEM/ODM): Recognizing that standard profiles do not cover every unique engineering challenge, our dedicated team excels in developing tailored solutions. We design and machine non-standard crimping dies for uniquely shaped terminals, ensuring you have the exact tooling for specialized, proprietary connections.
