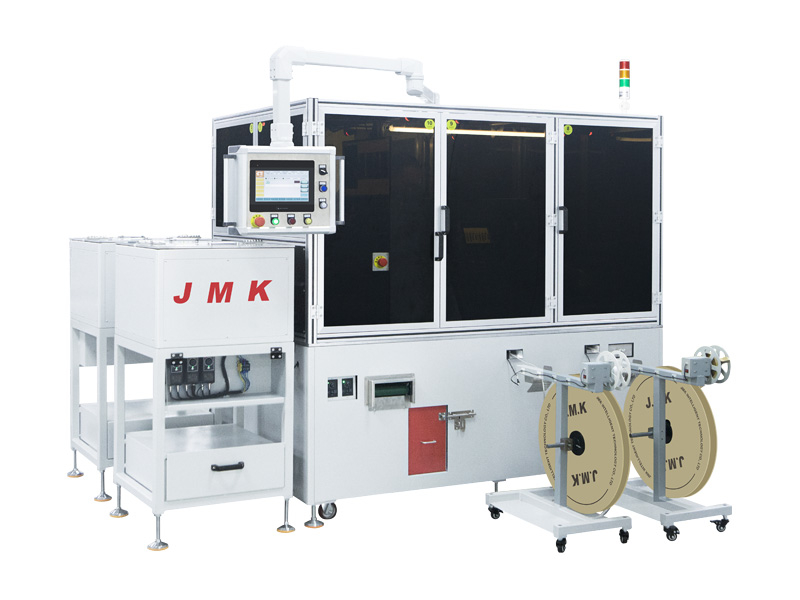

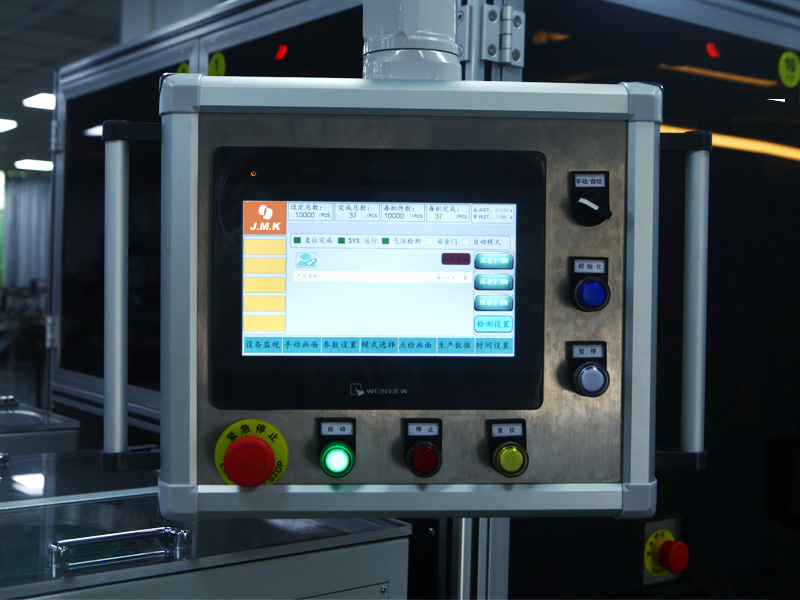

EU Standard - Automatic 3-ends Crimping and Double Head Insertion Machine - JMK

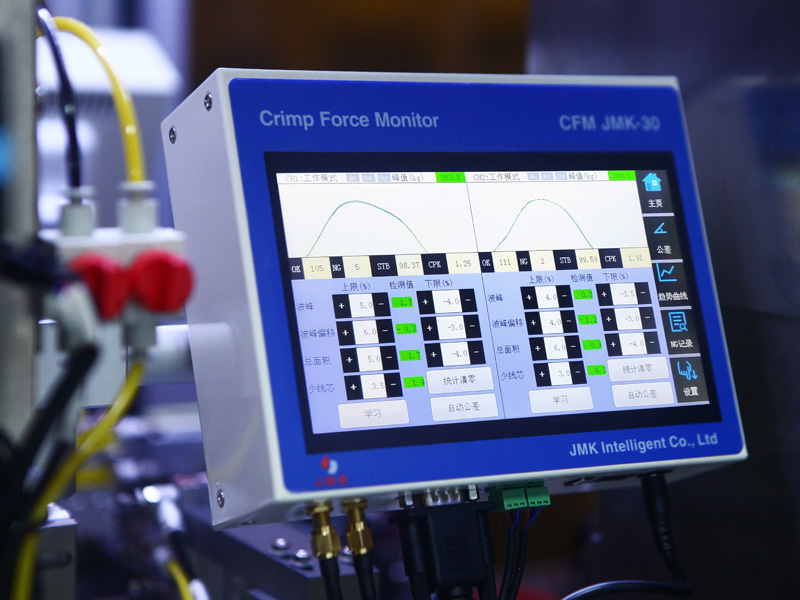

The whole machine adopts European standard design, strictly follows the European standard mechanical safety standards, and is equipped with fully enclosed safety cover, emergency stop button and photoelectric induction safety door in various directions, so as to ensure the personal safety of operators and the production process. It is equipped with three terminal crimping machines, which can complete a variety of different types of terminals crimping connector, furnished with high-speed and high-resolution CCD visual inspection and crimp monitoring system, as well as connector pull detection to ensure the stability of the connector, whole process quality monitoring, and automatic sorting of bad products. (Cycle speed: about 2 seconds per line)
Model | JM-600 |
Capability | Wire cutting,tare at both ends,pressing at both ends,inserting at one end,inserting at both ends,holding the wire in the reverse direction,discharging the good/bad product separately,and discharging automatically. |
Cable size | AWG#18-#30(Wire O.D. Φ2.5mm below) |
Cable color | Three Color |
Cutting length accuracy | ± 0.5% of wire length. |
Tare length | 0mm-5mm |
Tare length accuracy | Tolerance ± 0.1 mm |
Cutting length accuracy | Maximum adjustment of 2mm (manual adjustment ± 0.05mm) |
Crimper | 0.8t servo pressing machine 3 units |
Universal crimper | Special S600 press (waste cutting type) |
Inspection device | Low pressure,wire presence detection,wire overload detection,crimp error detection,terminal presence detection,terminal overload detection,terminal insertion detection,wire conduction,pressure sensing device,CDD visual inspection,and so on. |
Control method | PLC control |
Power supply | 3-Phase AC 380 |
Compressed air | 0.5MPa,about 170N/min |
Action temperature range | 5°C - inner 50°C |
Action humidity range | 30%-80%RH No condensation |
Warranty time | One year (excluding consumables) |
Machine dimensions | 5500W×5500D×1850H (Includes wire release frame,no protrusions.) |
Mechanical Weight | Approx. 2200kg + 100kg (payoff frame) |

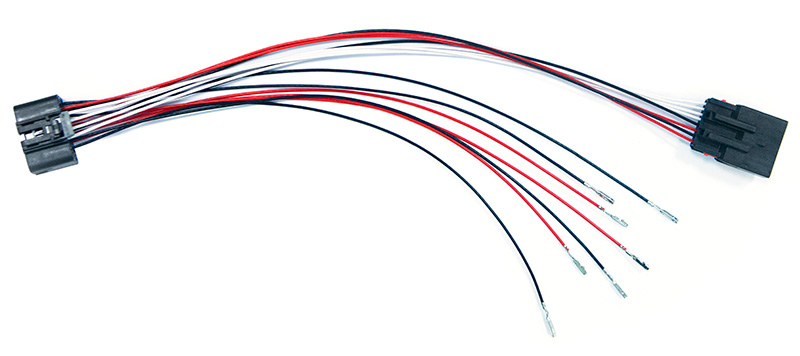

Sample harness (supports non-standard customization)
