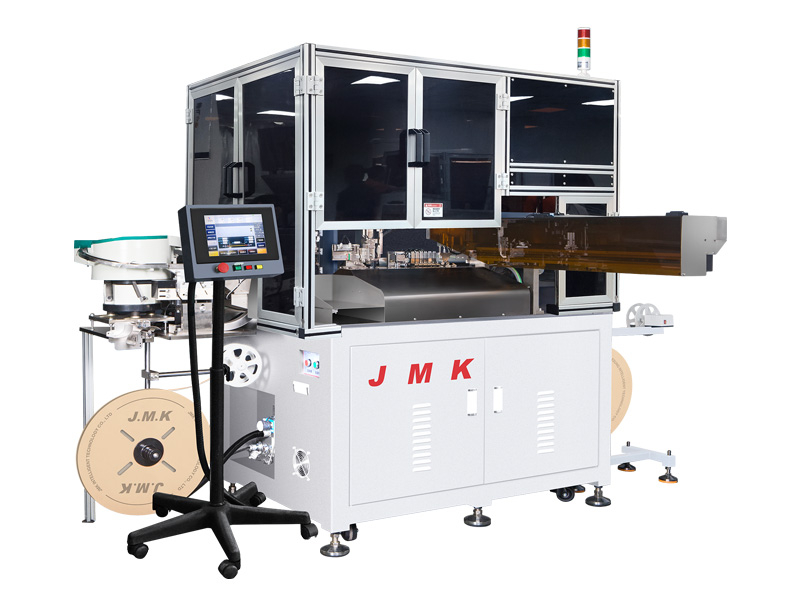

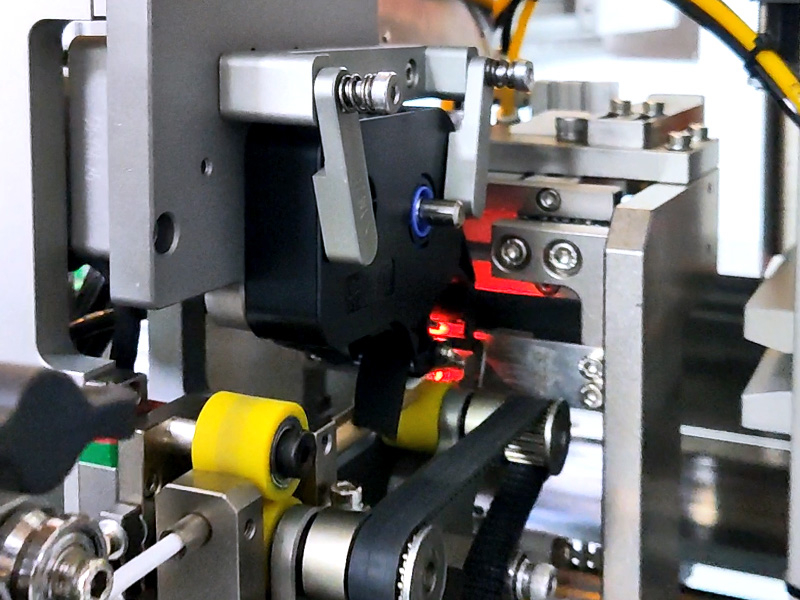

JM-601B+ Automatic Double Head Numbering Tube Single Head Shell Inserting Machine

Support wire cutting, both ends of the skinning, both ends of the pressure, both ends of the numbered tube, heat shrinkage, one end of the insertion of shells, wire reverse take method, good/bad goods

Availability:

Quantity:



Inquire Add to Basket

Product Description

Fully Automatic Dual-head Threading and Numbering Single-head Shell Insertion Machine

JM-601B+ Full Automatic Double Head Numbering Tube Single Head Shell Inserting Machine with precision servo-driven PLC numerical control system, which can store 100 groups of recipes in order to flexibly call up production data. It can produce 60-3000mm, 1-8 wire color choices (6 colors as standard), #16 to #28 wire number production.

Main Functions:

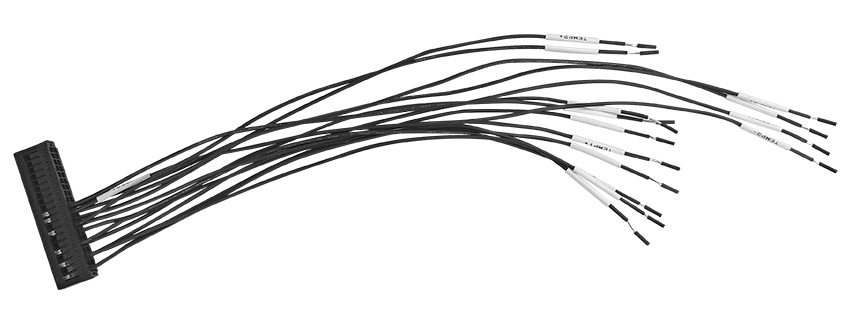

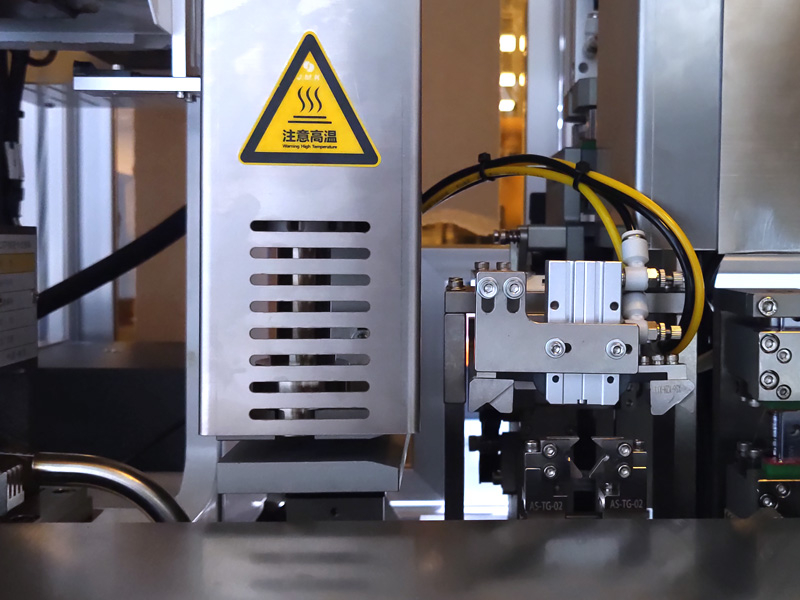

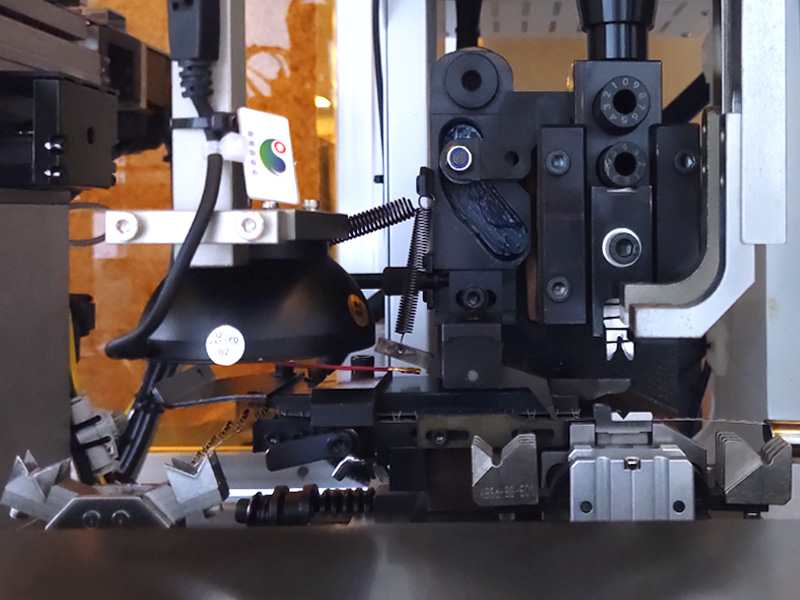

Wire cutting, tare at both ends, crimping at both ends, threading numbered tubes at both ends, heat shrinking, inserting shells at one end. Supporting non-standard customization, it can also flexibly expand many additional functions: stranding, soldering, threading waterproof pins, threading heat-shrinkable tubes and so on.

JM-601B+ can be equipped with optional pressure monitoring system and CCD visual inspection system, which can display real-time product image and crimping force curve, and conduct comparative analysis, trigger alarms when crimping defects and automatically sort out defective products, so as to monitor the quality of the whole processing process.

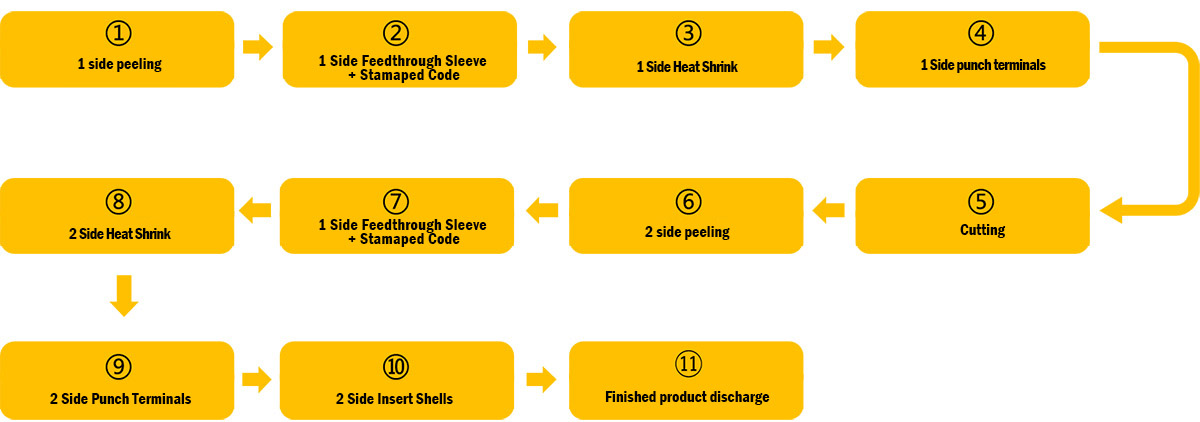

Equipment Action Flow:

Technical parameters:

Model Name	JM-601B+ Automatic Double-head Numbering Tube Threading Single-head Shell Inserting Machine
Functions	Wire cutting,tare at both ends,pressing at both ends,numbered tubes at both ends,heat-shrinking,insertion at one end,reverse wire holding,and automatic sorting of good/bad goods.
Wire Specification	AWG#16–#28 (wire O.D. 2.5mm or less)
Wire Color	6 colors (customizable)
Cutting Length	60mm—3000mm
Cutting Length Accuracy	±0.5%mm of product wire length
Stripping Length	0–15mm
Pipe-Through Specification	5mm — 25mm
Coding Method	Thermal transfer coding machines * 2 units
Crimp Strength	2T servo press * 2 sets
Crimping Stroke	30mm
Applicable Molds	General purpose OTP molds
Inspection Device	Standard:low pressure,wire presence detection,wire overload detection,crimping error detection,terminal presence detection,terminal overload detection,terminal insertion detection Optional:pressure detection device,CCD visual inspection system
Control Method	PLC Control
Compressed Air	Not less than 5MPa (170N/min)
Power	Single phase AC220V 50/60Hz 16A
Dimension	W2000×D3000×H1600mm (excluding protrusions)+W1000+D900+H1000mm(payoff frame)
Machine Weight	Approx. 1000kg + 80kg (payoff frame)
