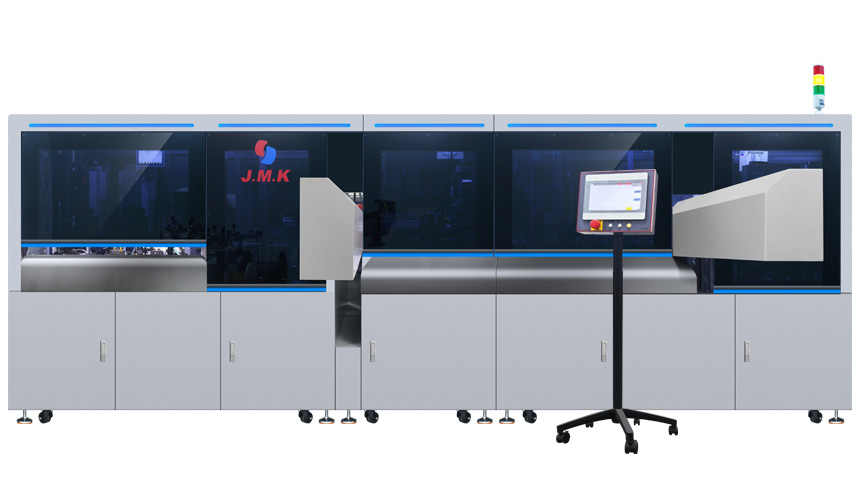

Product Introduction:
JM-300A is a machine specially customized for cable harnesses that crimping multiple cables together. It can crimp a single wire to multiple wires, or multiple wires to multiple wires. Also, it can automatically complete the insulation sleeve tube with the extra station, greatly improves the quality of cable harness crimping and reduces labor.
Product Feature:
1. Features a fully closed-loop flexible wire feeding system with a rubber belt mechanism to protect the wire surface and enhance feeding accuracy.
2. Incorporates a network-driven system to meet the rigorous industrial processing demands of photovoltaic wires.
3. Utilizes imported servo motor drives to ensure high precision, efficiency, and operational stability.
4. Runs on an industrial-grade computer operating system, offering a user-friendly and intuitive interface.
5. Supports both manual and automatic debugging modes, making equipment setup faster and more efficient.
6. Equipped with a servo-driven crimping system that maintains a stable compression ratio, fully meeting cross-sectional analysis standards.

Technical Parameters：

Model name	JM-300A automatic multi-wire crimping and terminal connecting machine
Function	Wire cutting, single/double end stripping, crimping, wire jointing, heat shrink tubing, heat shrinking, supporting one-to-many and many-to-many jointing
Wire Specifications	0.3-6mm²， AWG26#-AWG10#（(Support customization)
Wire Color	4 wire color (Support customization)
Cutting length	100mm-4000mm
Stripping length	1-10mm
Pipe specifications	Φ2.0-8.0mm
Crimp strength	2.0T×5 5 units
Applicable mold	Universal OTP mold
Detection device	Air pressure detection, wire detection, crimp terminal detection, pressure monitoring (optional)
Control method	PLC
Efficiency	CT: 4s/pcs, about 900-1200pcs/hour (depending on the specific wire material)
Compressed air	5MPa~7MPa (air volume used is about 130N/min~170N/min)
Power supply	AC380V/50Hz 10KW
Dimensions	Length 4500 × Width 2500 × Height 1800mm
Weight	About 2200kg

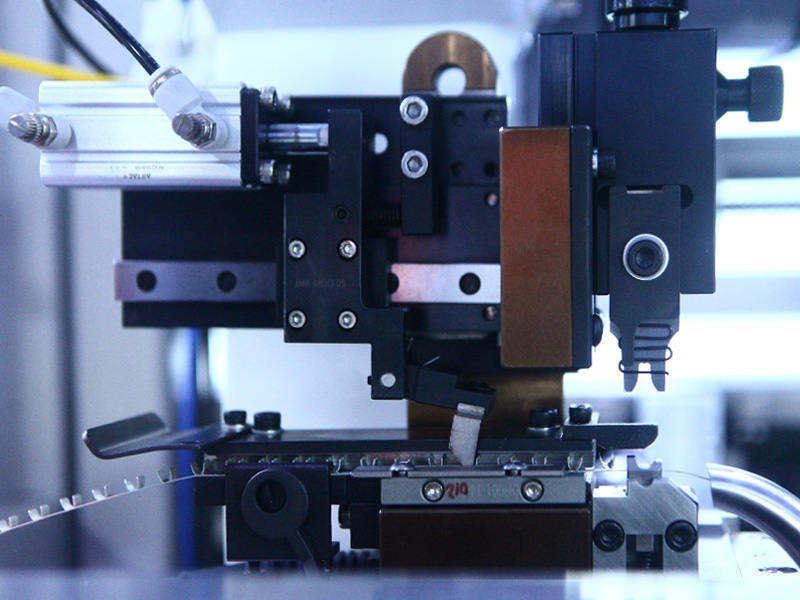

Product Details:

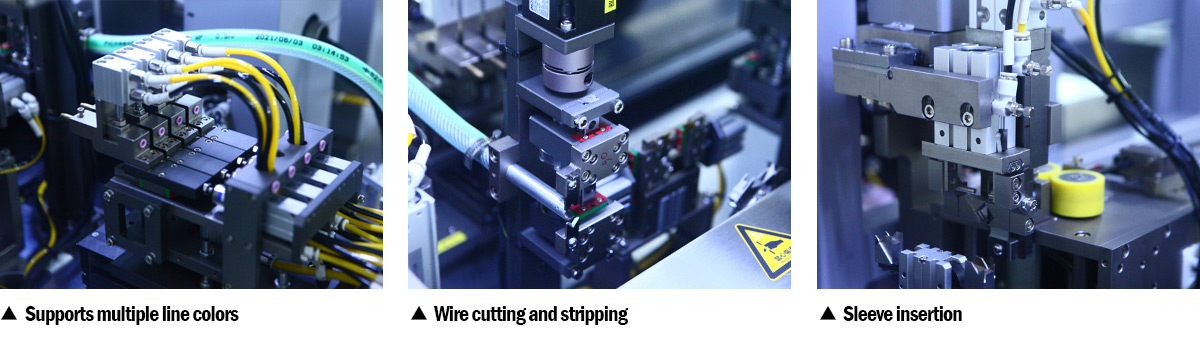

Equipment application

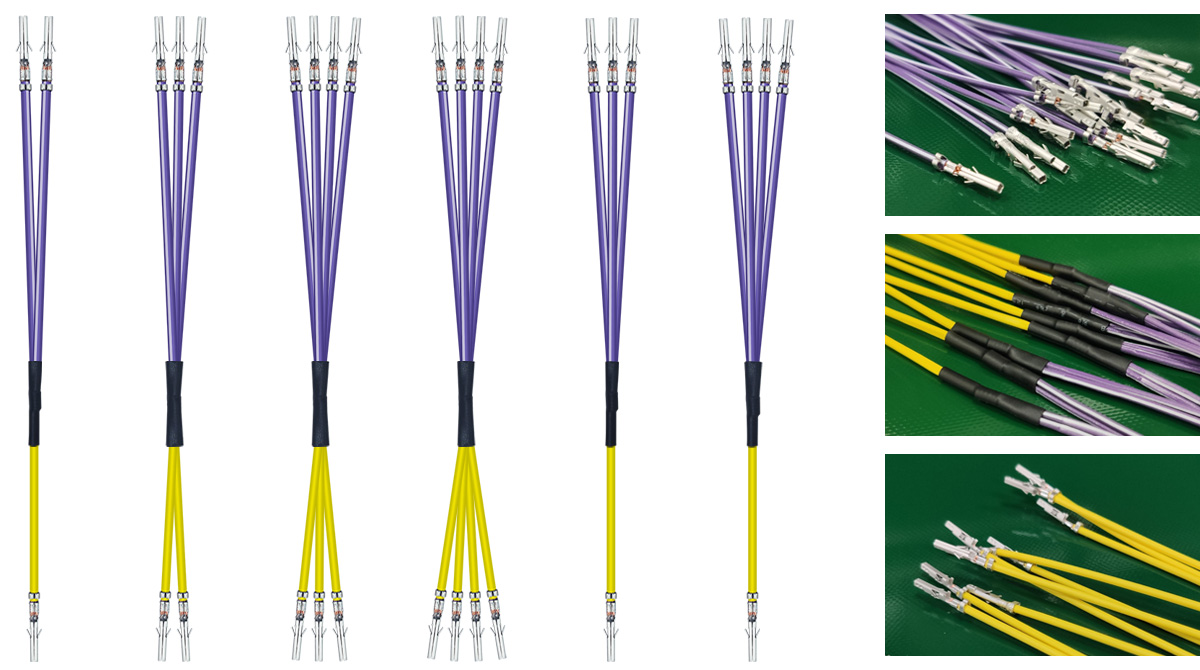

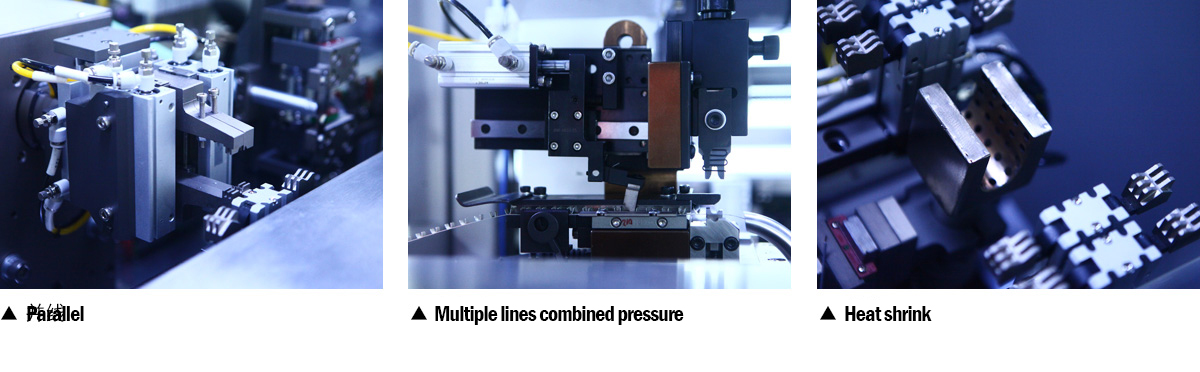

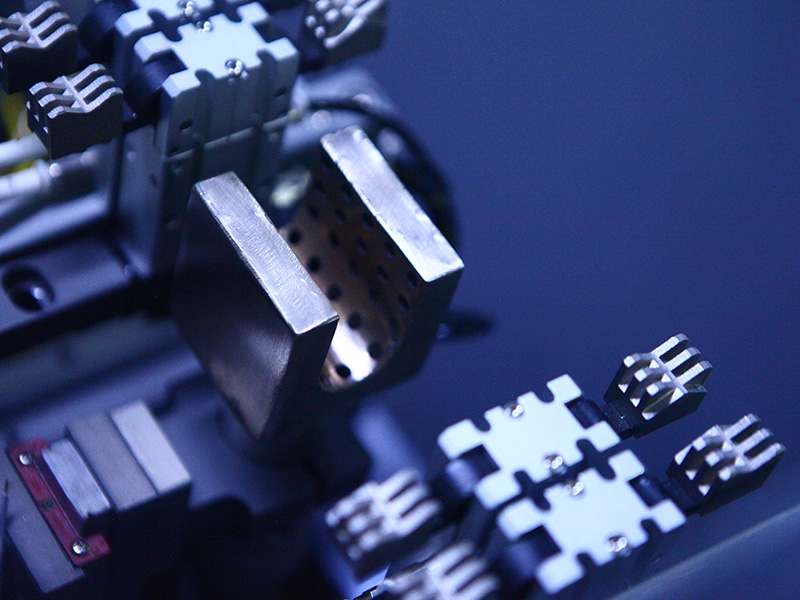

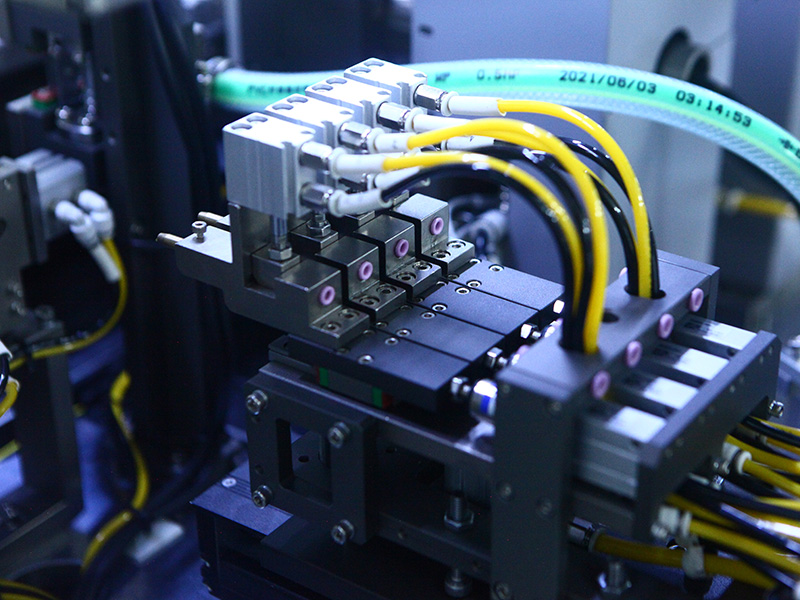

Supports one-to-many, many-to-many, etc. wire harness crimping and splicing, and heat shrinking of casing
——

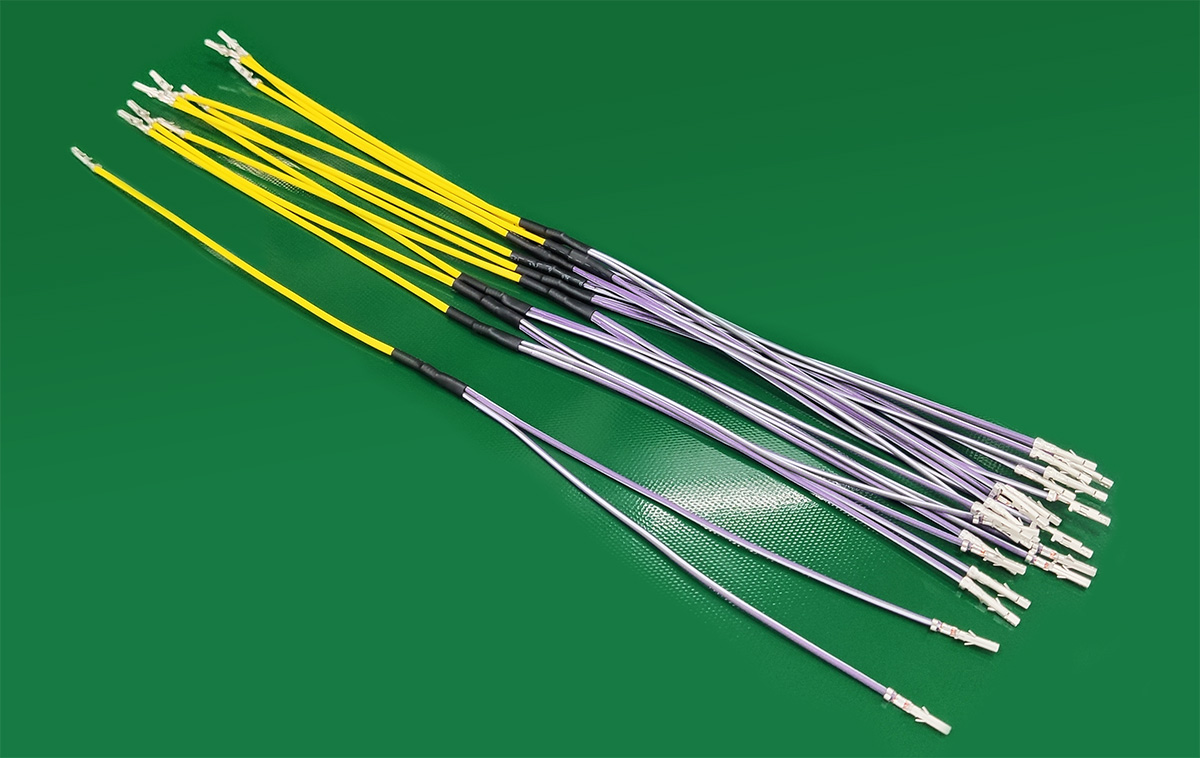

Wire harness sample
——
