The JM-555A Automatic Crimping Machine represents a pivotal advancement in wire harness processing, specifically engineered for single and double-end waterproof plug threading and crimping. When observing this equipment in action, operators immediately notice the quiet, rhythmic precision of its synchronized mechanisms. The smooth, continuous feed of the wire, coupled with the sharp, clean sound of the cutting blade, reflects the superior engineering embedded in the machine's core.
Instead of managing multiple isolated stations, production managers can rely on this unified system to execute fixed-length cable cutting, single or double-end half-stripping, full-stripping, crimping, and waterproof plug threading simultaneously. This synchronous operation eliminates intermediate handling, significantly reducing the risk of contamination or physical damage to delicate wire strands. Built for intensive industrial environments, the JM-555A transforms raw cable spools into fully finished, rigorously sealed harness components in milliseconds, providing an immediate upgrade to production capacity, yield rates, and overall output consistency.
Powered by internationally recognized servo systems and premium pneumatic components, the machine maintains exceptional stability even during continuous, high-load operation cycles. The tactile solidity of the chassis minimizes vibration, ensuring a prolonged operational lifespan while maintaining absolute structural integrity.
Deeply integrated with a built-in pressure management system and an optional visual inspection module, this setup automatically identifies and mechanically ejects defective pieces before they proceed down the line. This real-time monitoring safeguards a near-perfect yield rate, ensuring every crimp meets exact specifications.
Operators interact with a highly responsive, multi-language visual PC interface. The graphical display allows for intuitive navigation, rapid mold changes, and one-touch retrieval of saved processing parameters, drastically cutting down training requirements and minimizing costly downtime during product changeovers.
Equipped with a flexible wire feeding system, the mechanism gently handles the cable surface, preserving insulation integrity while achieving pinpoint length accuracy. Furthermore, its highly modular architecture allows for the effortless addition of wire seal stations, conduit stations, or labeling modules to adapt to evolving production demands.
The system supports customized processing for FAKRA wire harnesses and ultra-short new energy cables, delivering exact specifications without compromise. The international-grade design features a compact and streamlined structure, optimizing valuable floor space without sacrificing performance.
Understanding the exact capabilities of your equipment is crucial for accurate production planning. The following specifications detail the precise operational thresholds of the JM-555A series. Every parameter, from the 20KN crimping force to the remarkable processing capacity of up to 5200 pieces per hour, has been validated through rigorous industrial testing to ensure reliable performance under demanding conditions. Facility managers can confidently rely on these metrics when calculating throughput, air consumption, and spatial requirements for their facility layouts, ensuring smooth integration into existing manufacturing workflows.
Model | JM-555----JM-555A----JM-555B Automatic Crimping Machine Single/Double end Waterproof Plug Threading Crimping Machine |
Power | 13KW(Max) |
Capacity | 1000~5200pcs/H(shortest cut wire) |
Gas source | 0.5-0.7MPa |
Air consumption | 3m/h |
Can cut off the length | 50-9999mm |
Can cut off precision | ≤1000mm,±1mm,21000mm, |
Peeling length | 0.1-16mm |
Machinable wire diameterx2 | 0.13-6.0mm2(26-10 AWG) |
Send speed | 8-12m/s(Max) |
Crimp ability | 20KN(tonnage can be customized) |
Crimp travel | 30mm(40mm Optional) |
Ambient temperatur | 0~40℃ |
Size | L3720xW1450xH2010mm(protection quantity lifting height about 2850mm) |
Weight | About 1000kg |
Optional | Wire seal Station;Wire Conduit Station;Visual module of crimper;Puller;Magnifying glass;Electronic micrometer;Safety cover |

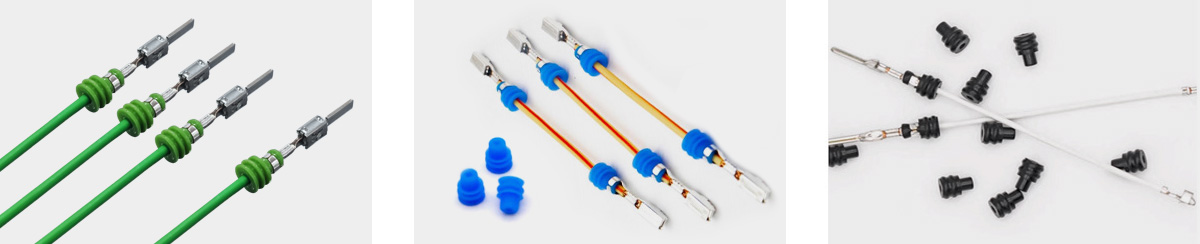

The versatility of the JM-555A extends across multiple demanding sectors where precision and environmental sealing are non-negotiable. In the automotive industry, particularly with FAKRA connectors and advanced sensor cabling, the machine ensures that every waterproof plug is threaded with absolute concentricity, preventing moisture ingress that could compromise critical vehicle systems.
For the rapidly expanding new energy and energy storage sectors, the equipment handles the heavy-duty insulation and secure crimping required for high-current applications. The powerful mechanical action guarantees a tight, oxidation-resistant bond. Additionally, aerospace manufacturers and producers of high-end smart home appliances rely on this technology to maintain flawless electrical connectivity in environments subjected to extreme temperature fluctuations, harsh vibrations, and continuous mechanical stress.
Transitioning to our fully automatic crimping solutions means investing in a comprehensive ecosystem designed for maximum efficiency, safety, and continuous support. From the initial cutting phase to the final insulation and crimping, every automated step guarantees fast, reliable, and accurate processing of single and multi-core cables.
