Wire Cutting and Stripping｜Single Head Insertion｜Single Head Tinning｜Stranded Wire
JM-601A+ can be equipped with optional pressure monitoring and CCD image detection system, which can display real-time product image and crimping force curve, and conduct comparative analysis, and send out alarms when crimping defects and automatically sort out defective products. The whole process of quality control greatly saves labor costs, ensures product quality and improves production efficiency.

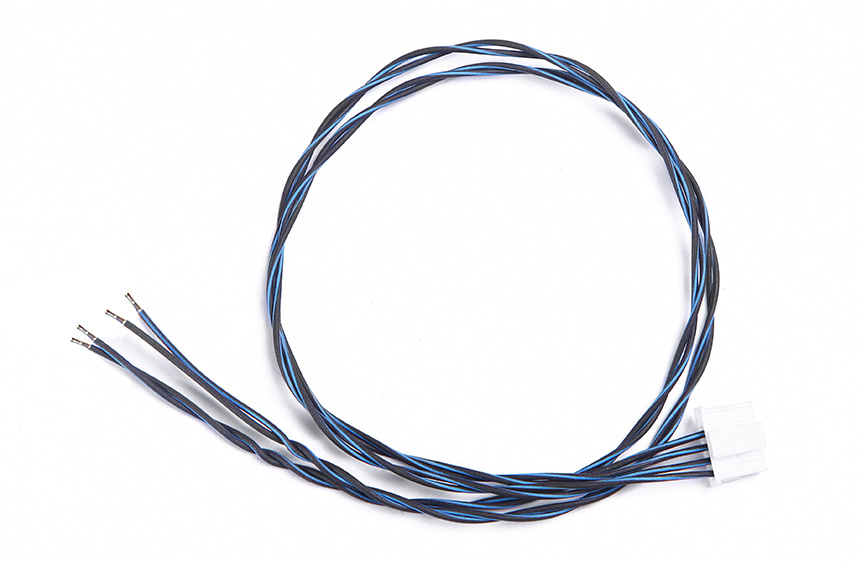

Fixed-length wire cutting/Double-end stripping/Single-end terminal crimping/Single-end connector insertion/Single-end tin dipping/Wire twisting (stranding)
Supports non-standard customization and modular function expansion, including:Soldering/Waterproof seal insertion/Heat-shrink tubing application/Numbering tube placement/And other customized processing tasks
• International-grade design with a compact and streamlined structure;
• Equipped with a flexible wire feeding system that protects the wire surface while ensuring high wire length accuracy;
• Utilizes a servo-driven crimping system to guarantee stable and consistent crimping precision;
• User-friendly PC interface with graphical display for intuitive and simplified operation;
• Built-in pressure management system enables real-time monitoring, automatic defect detection, and removal;
• Supports customized processing for FAKRA wire harnesses and ultra-short new energy harnesses;

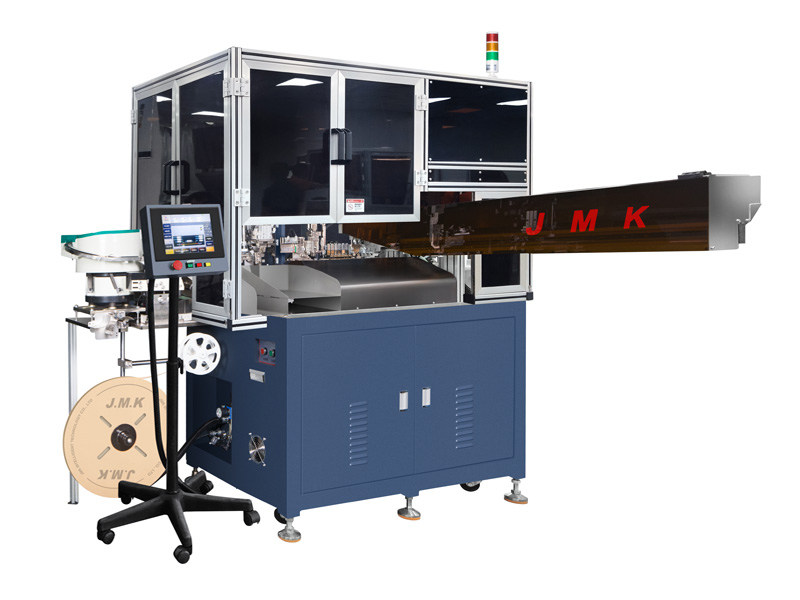

Model | JM-601A(Fully automatic single-head shell insertion single-head tin dipping machine) |
Power supply | AC220V 50/60Hz 10A |
Speed | Approx. 2.0 sec/strip (at the time of the shortest cutting line) |
Gas source | 0.5MPa,about 170N/min |
Wire Color | 1-8 (standard 6 colors) |
Can cut off the length | 45-9999mm(customizable) |
Can cut off precision | ± 0.5%xL |
Peeling length | 0-5.0mm(±0.1mm) |
Machinable wire diameter | AWG#18-#28 (customizable) |
Crimp ability | 2T servo pressing machine×1 set (Fully automatic single-head shell insertion single-head tin dipping machine) |
Size | W1600xD1500xH1900mm (Fully automatic single-head shell insertion single-head tin dipping machine) |
Weight | About 450kg |
About 450kg | CCD visual inspection;pressure monitoring;waterproof bolted base station. |
