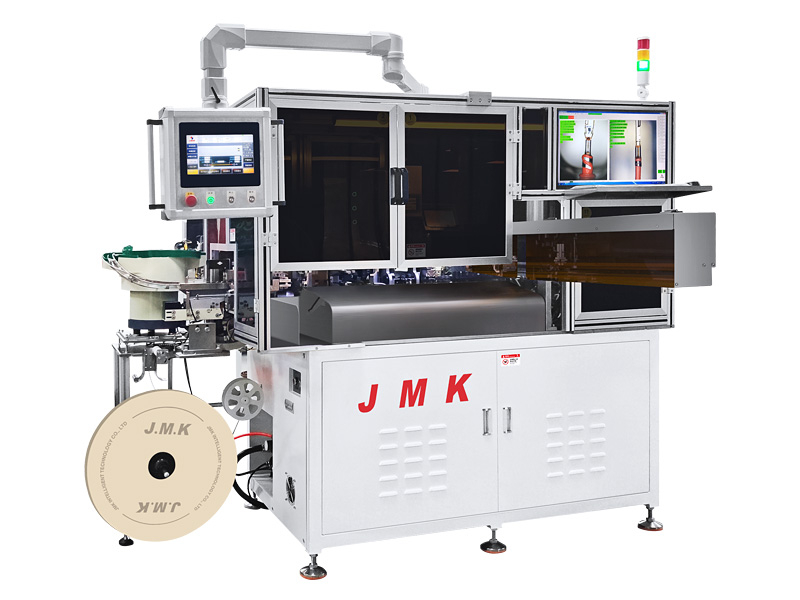

M-601A+ Automatic Single Head Tinning and Inserting Machine

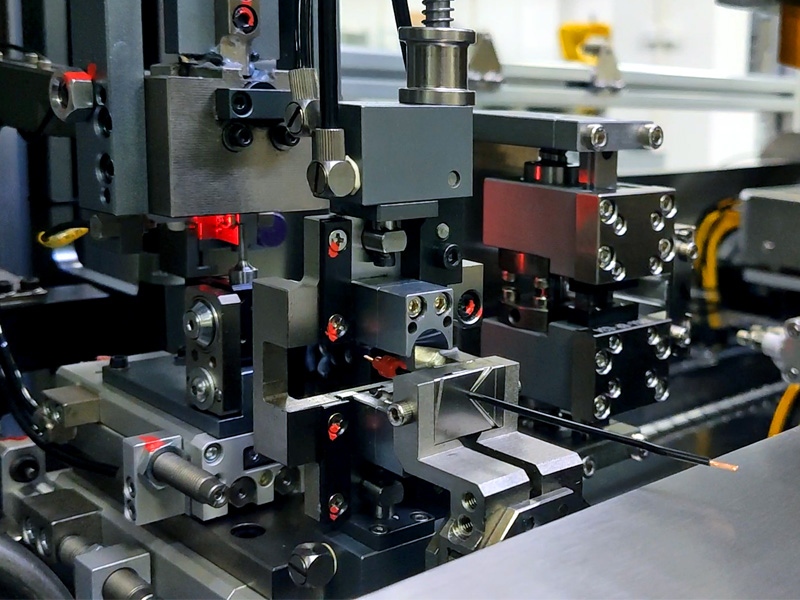

JM-601A+ Automatic single head tin dipping, waterproof plug inserting machine, supports wire cutting at fixed length, stripping at both ends, single head crimping, single head waterproof plug inserting, single head tin dipping. Can produce 45-9999mm (customizable), 1-12 wire color options (standard 6 colors), support #18 ~ #28 wire number production. Nissei Intelligent supports non-standard customization, and can also flexibly expand a number of additional functions: marking numbered tubes, threading heat-shrinkable tubes, stranded wires, and so on.
JM-601A+ can be equipped with optional pressure monitoring and CCD visual inspection system, which can display the product image and crimping force curve in real time, and carry out comparative analysis, and trigger an alarm when crimping is defective and automatically sort out the defective products. The whole process of quality control greatly saves labor costs, ensures product quality and improves production efficiency.
Model | JM-601A | JM-601B |
Power supply | AC220V 50/60Hz 10A | |
Speed | Approx. 2.0 sec/strip (at shortest tangent) | |
Gas source | 0.5MPa,approx. 170N/min | |
Wire color | 1–8 (Standard 6 colors) | |
Can cut off the length | 45–9999mm(customizable) | |
Can cut off precision | ± 0.5%×L | |
Stripping length | Stripping length | |
Machinable wire diameter | Awg #18–#28 (Customizable) | |
Crimp ability | 2T servo crimping machine × 1 set | 2T servo crimping machine × 2 set |
Size | W1600xD1500xH1900mm | W1700xD1500xH1900mm |
Weight | About 450kg | About 500kg |
Optional | CCD visual inspection;pressure monitoring;waterproof plug base station | |
